4.2 Inch 720x720 Circular Display TTL 850nits High Brightness Wide Temperature IPS Round LCD Display With Capacitive Touch

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET042HD01-TST

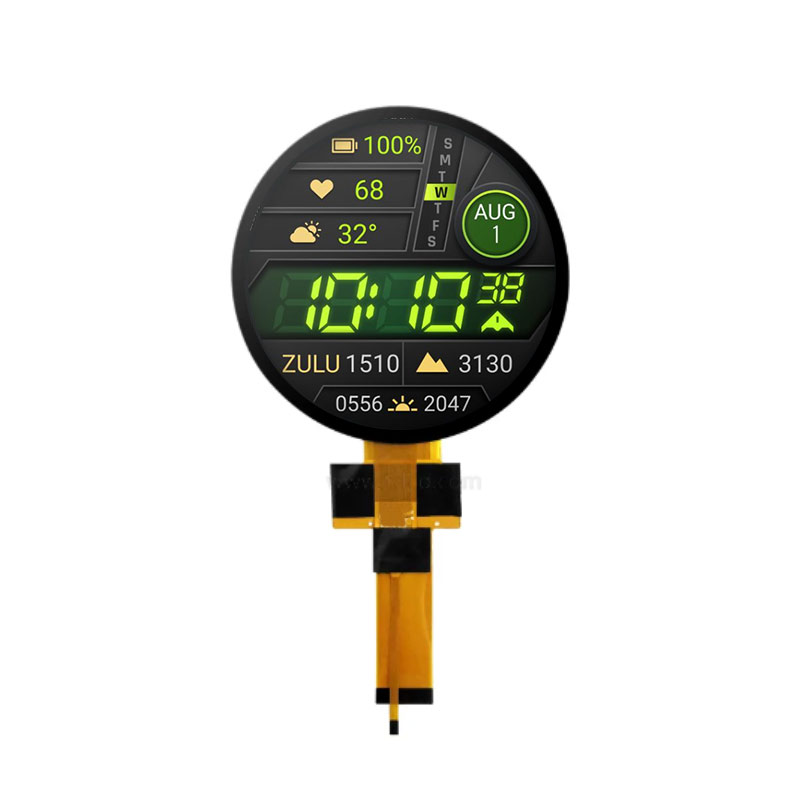

ET042HD01-TST is a 4.2-inch circular IPS LCD display with a 720 × 720 resolution, designed for wide-temperature applications. It features a transmissive display mode with a TTL interface and an active area of 105.84 × 105.84 mm within an outline dimension of 132.5 × 132.5 mm. The display delivers a typical brightness of 850 cd/m², supports a viewing angle of 80° left/right/up/down, and operates between –30 to 85 °C with storage from –30 to 85 °C. This model includes capacitive touch functionality.

Technical Data:

Part #：

ET042HD01-TST

Brand：

YOURITECH

Size：

4.2 Inch"

Resolution：

720x720

Interface：

TTL

Technology：

Transmissive

Brightness：

850cd/m²

Operating Tem：

-30~85°C

Storage Tem：

-30~85°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
