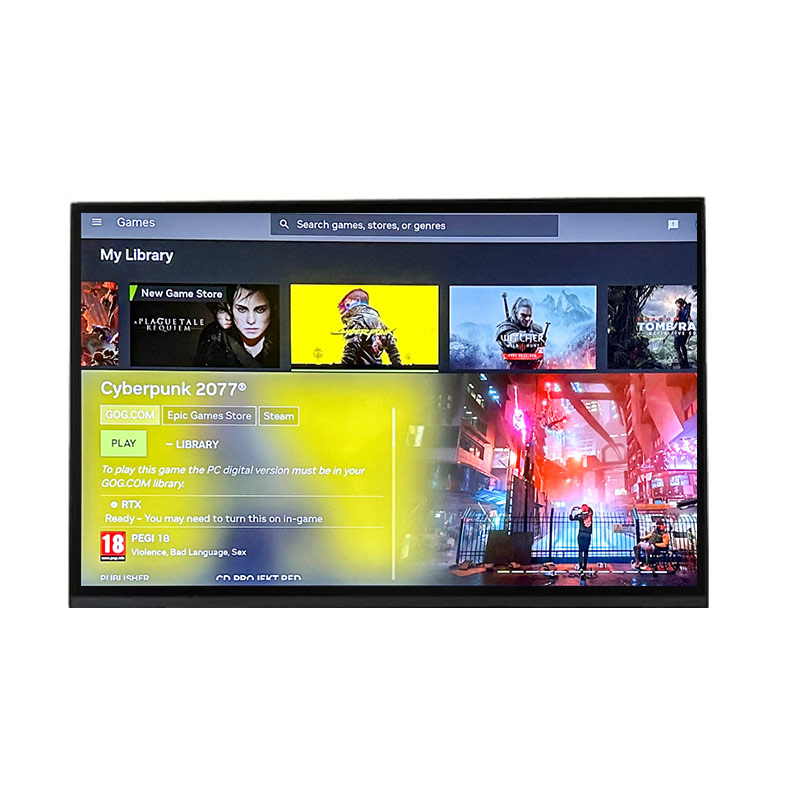

18 Inch 2560×1600 eDP High Brightness 500nits TFT LCD Display NE180QDM-NZ2 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > NE180QDM-NZ2
NE180QDM-NZ2 is a 18.0 inch diagonal Oxide TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. NE180QDM-NZ2 supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 387.763(W)×242.352(H) mm, outline size of 394.76(W)×253.75(H)×5.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 560g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE180QDM-NZ2 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (DCI-P3). This product adopted 12S8P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE180QDM-NZ2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 240Hz.
Technical Data:
Part #：
NE180QDM-NZ2
Brand：
BOE
Size：
18.0 inch"
Resolution：
2560×1600
Interface：
eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector
Technology：
Transmissive
Brightness：
500 cd/m² (Typ.)
Operating Tem：
0~50°C
Storage Tem：
-20~60°C
