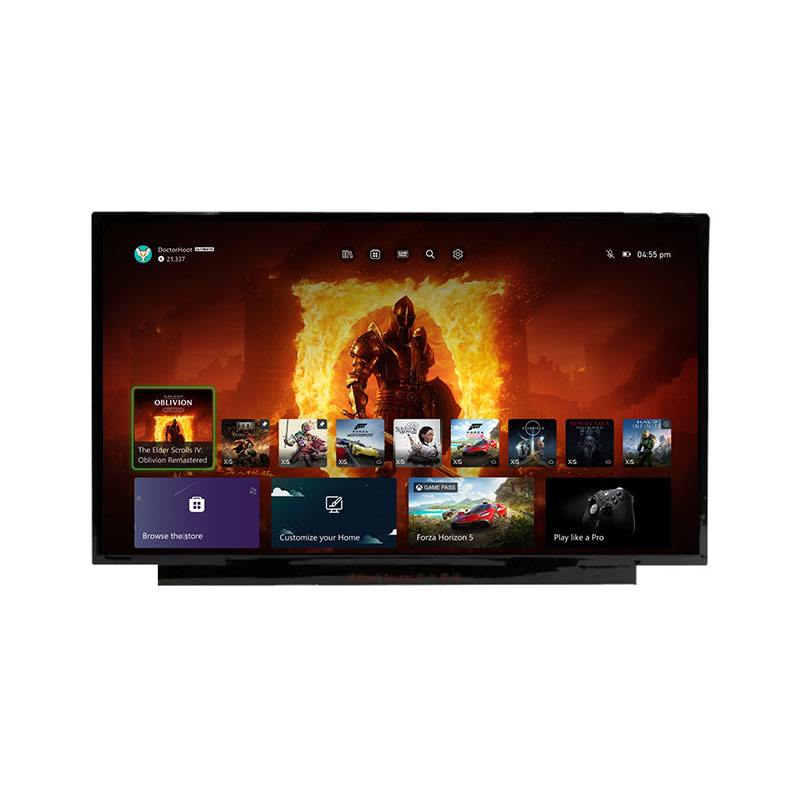

16.1 Inch 2560×1440 eDP TFT LCD Display NE161QHM-NY1 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > NE161QHM-NY1
NE161QHM-NY1 is a 16.1 inch diagonal Oxide TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. NE161QHM-NY1 supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 355.43(W)×199.93(H) mm, outline size of 361.93(W)×222.59(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 320g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE161QHM-NY1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE161QHM-NY1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 165Hz.
Technical Data:
Part #：
NE161QHM-NY1
Brand：
BOE
Size：
16.1 inch"
Resolution：
2560x1440
Interface：
eDP (4 Lanes)
Technology：
Transmissive
Brightness：
300cd/m²
Operating Tem：
0~50°C
Storage Tem：
-20~60°C
