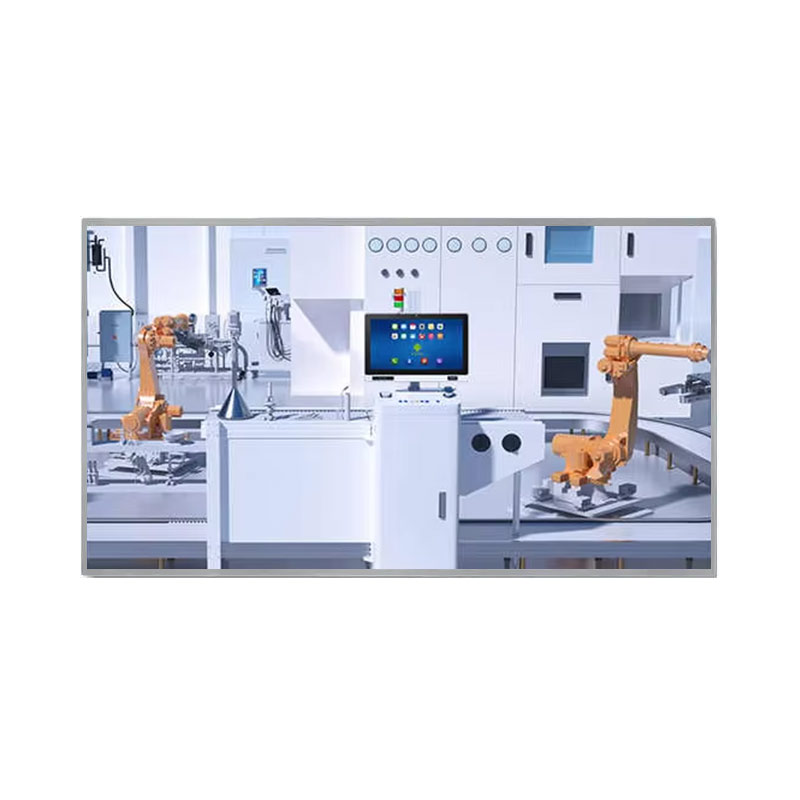

16 Inch 1920×1200 eDP TFT LCD Display NE160WUM-NX1 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > NE160QAM-NX1
NE160WUM-NX1 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 344.68(W)×215.42(H) mm, outline size of 349.68(W)×231.92(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 400g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE160WUM-NX1 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S8P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE160WUM-NX1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.
Technical Data:
Part #：
NE160QAM-NX1
Brand：
BOE
Size：
16.0 inch"
Resolution：
3840×2400
Interface：
eDP (4 Lanes) , eDP1.4b , HBR3 (8.1G/lane) , Connector 40 pins
Technology：
Transmissive
Brightness：
500 cd/m² (Typ.)
Operating Tem：
0 ~ 50 °C
Storage Tem：
-20 ~ 60 °C
