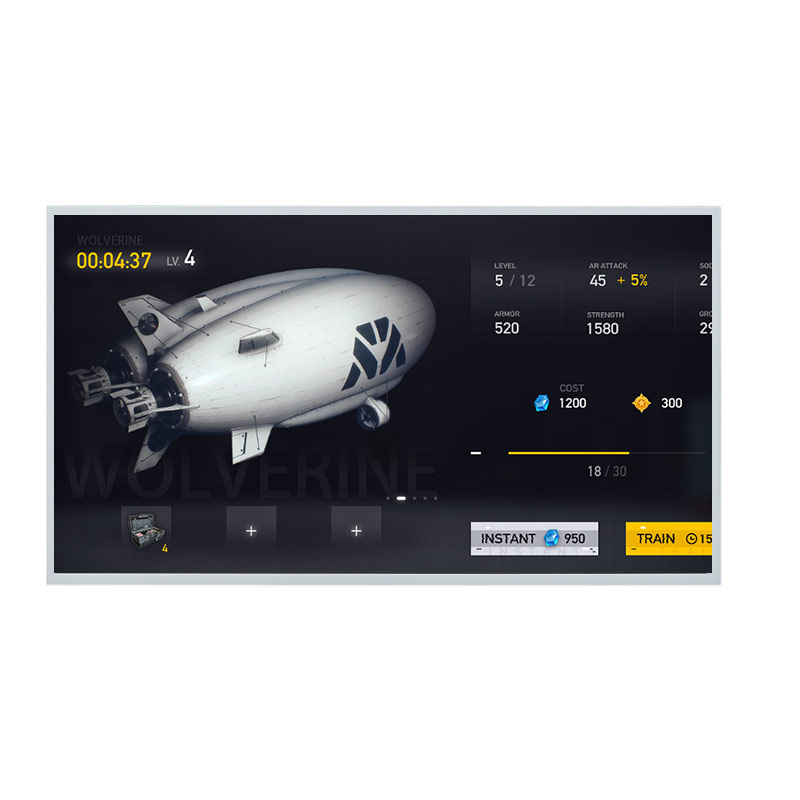

27 Inch 3840×2160 eDP TFT LCD Display ME270QUM-NF5 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > ME270QUM-NF5
ME270QUM-NF5 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×355.3(H)×14.9(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.25Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, ME270QUM-NF5 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 97% (DCI-P3). This product adopted 9S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. ME270QUM-NF5 utilizes eDP (16 Lanes) as it's signal inputting systerm, which connected by 120 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 165Hz.
Technical Data:
Part #：
ME270QUM-NF5
Brand：
BOE
Size：
27 inch"
Resolution：
3840x2160
Interface：
eDP (16 Lanes)
Technology：
Transmissive
Brightness：
400cd/m²
Operating Tem：
0~50°C
Storage Tem：
-20~60°C
