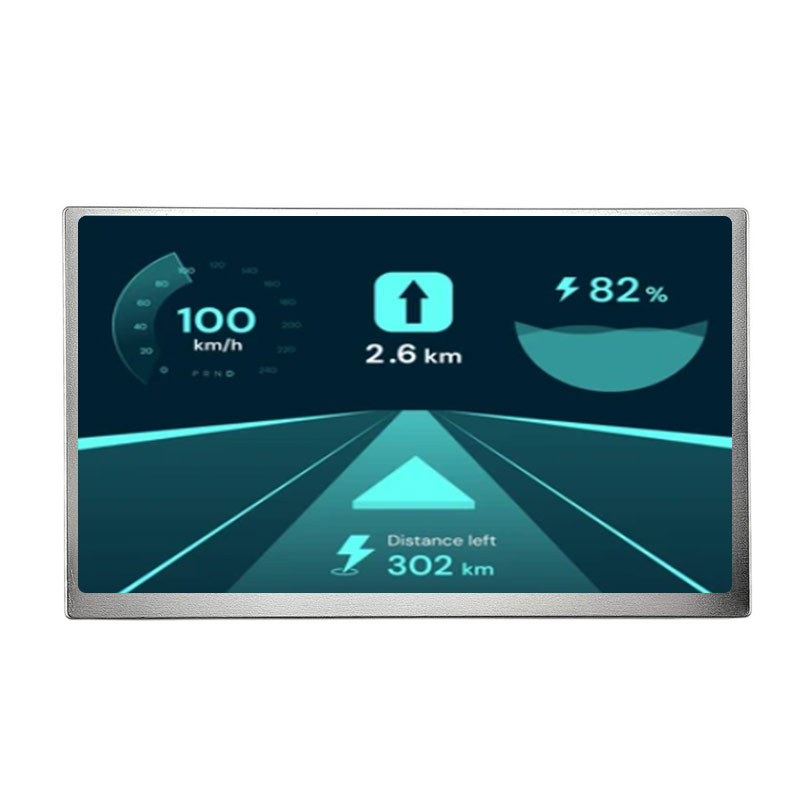

TX20D200VM2BAB 8 Inch TFT LCD Display LVDS 800×480 High Brightness 1500nits Wide Temperature -30~85°C LCD Display For EV Charger

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > KOE > TX20D200VM2BAB
TX20D200VM2BAB supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 174(W)×104.4(H) mm, outline size of 189(W)×122(H)×10.7(D) mm, viewing area size of 176.0(W)×106.4(H) mm, net weight of 220g. As a TN, Normally White, Transmissive LCM product, TX20D200VM2BAB can provides 1500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX20D200VM2BAB utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
TX20D200VM2BAB
Brand：
KOE
Size：
8 inch"
Resolution：
800x480
Interface：
LVDS (1 ch,6-bit)
Technology：
Transmissive
Brightness：
1500(Typ.)
Operating Tem：
-30~80°C
Storage Tem：
-30~80°C
