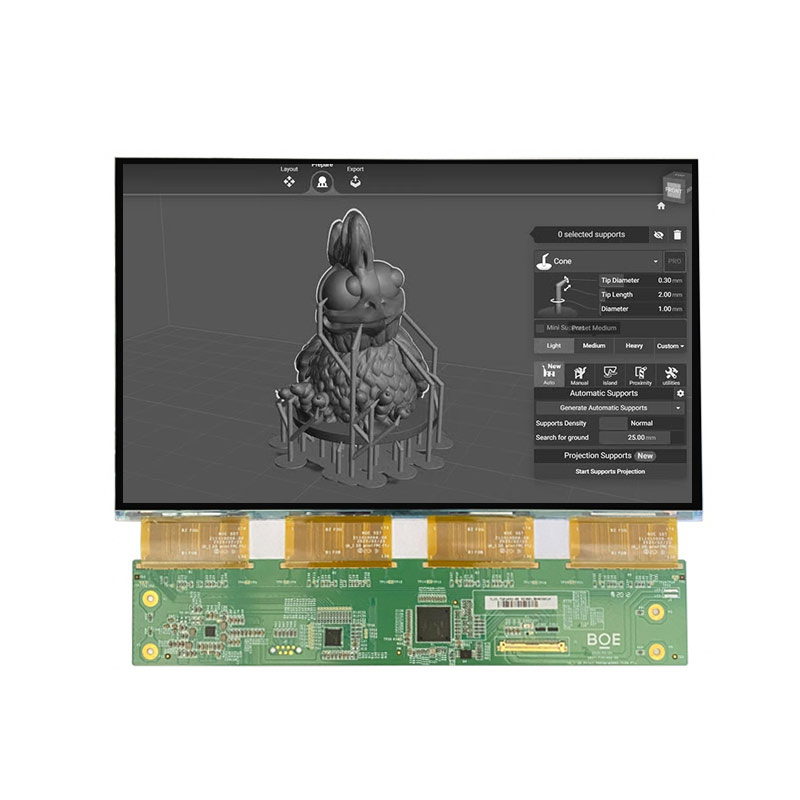

RV101FBB-N00 10.1 Inch 4920×2880 IPS eDP TFT LCD Display For 3D Printer

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > OTHERS > RV101FBB-N00

RV101FBB-N00 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen. RV101FBB-N00 supports display 4920×2880 with aspect ratio of 17:10 (W:H), whose pixels are arranged in Rectangle, it's pixel density is 564 PPI. As for mechanical detail, it features active area of 221.4(W)×129.6(H) mm, outline size of 227.43(W)×139.5(H)×0.95(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of TBD, utilizing 0.35+0.35 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, RV101FBB-N00 can provides 400:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product have no backlight. RV101FBB-N00 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

RV101FBB-N00

Brand：

OTHERS

Size：

10.1 inch"

Resolution：

4920x2880

Interface：

eDP (4 Lanes)

Technology：

Transmissive

Brightness：

Operating Tem：

0~70°C

Storage Tem：

-10~80°C
