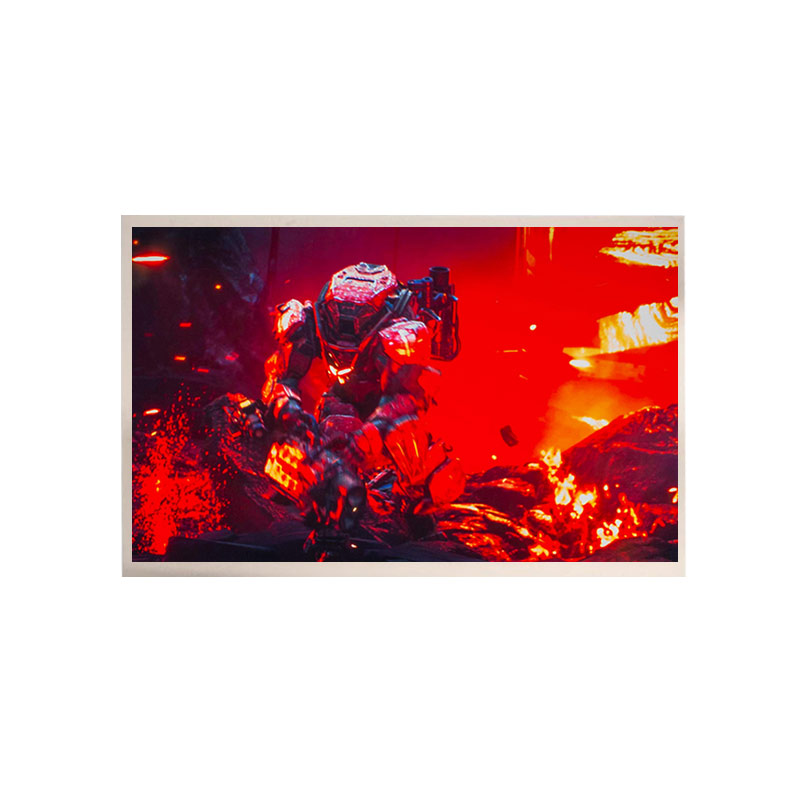

8 Inch 1920×1200 eDP High Brightness TFT LCD Display With Touch NS080WUM-LX1 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > NS080WUM-LX1
NS080WUM-LX1 is a 8.0 inch diagonal LTPS TFT-LCD display screen product from BOE, with a built-in WLED backlight, With LED Driver, touchscreen In-Cell Touch.NS080WUM-LX1 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 283 PPI. As for mechanical detail, it features active area of 172.244(W)×107.64(H) mm, outline size of 180.2(W)×121.9(H)×4.35(D) mm, with surface treament of Hard coating (3H), net weight of 92.0g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NS080WUM-LX1 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17 (Typ.)(Tr+Td), 25 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NS080WUM-LX1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.
Technical Data:
Part #：
NS080WUM-LX1
Brand：
BOE
Size：
8 inch"
Resolution：
1920x1200
Interface：
eDP (2 Lanes)
Technology：
Transmissive
Brightness：
500cd/m²
Operating Tem：
0~50°C
Storage Tem：
-20~60°C
