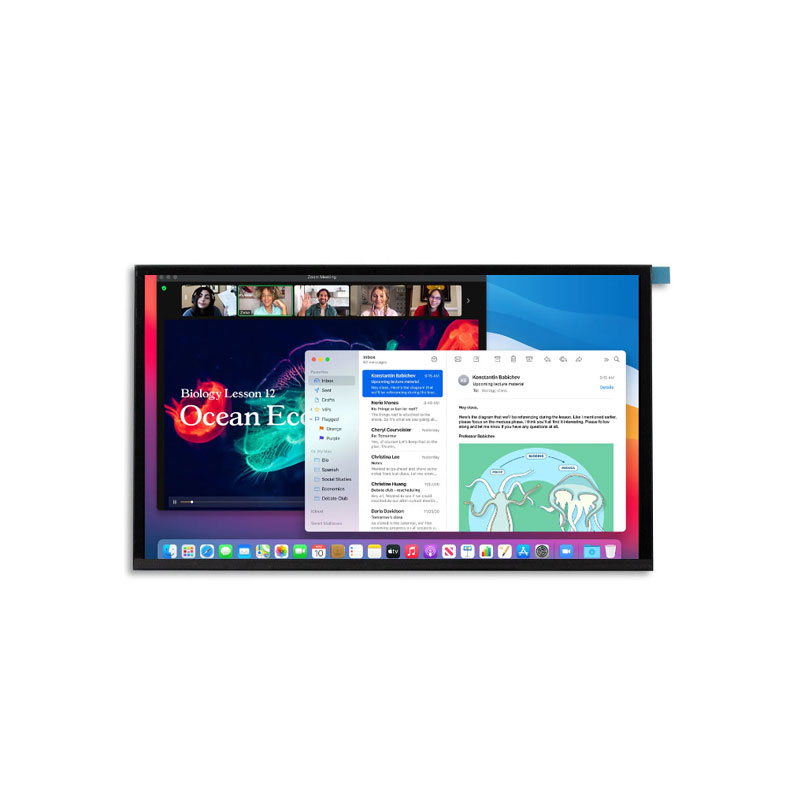

M133NWF3 R1 13.3 inch 1920x1080 EDP Interface Sunlight Readable TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > M133NWF3 R1

M133NWF3 R1 is a 13.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.M133NWF3 R1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 300.26(W)×177.89(H)×3.9(D) mm, with surface treament of Antiglare, net weight of 205g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, M133NWF3 R1 can provides 700 cd/m² display brightness 600:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC).

Technical Data:

Part #：

M133NWF3 R1

Brand：

YOURITECH

Size：

13.3 inch"

Resolution：

1920x1080

Interface：

eDP (4 Lanes)

Technology：

Transmissive

Brightness：

700cd/m²

Operating Tem：

0~50°C

Storage Tem：

-20~60°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
