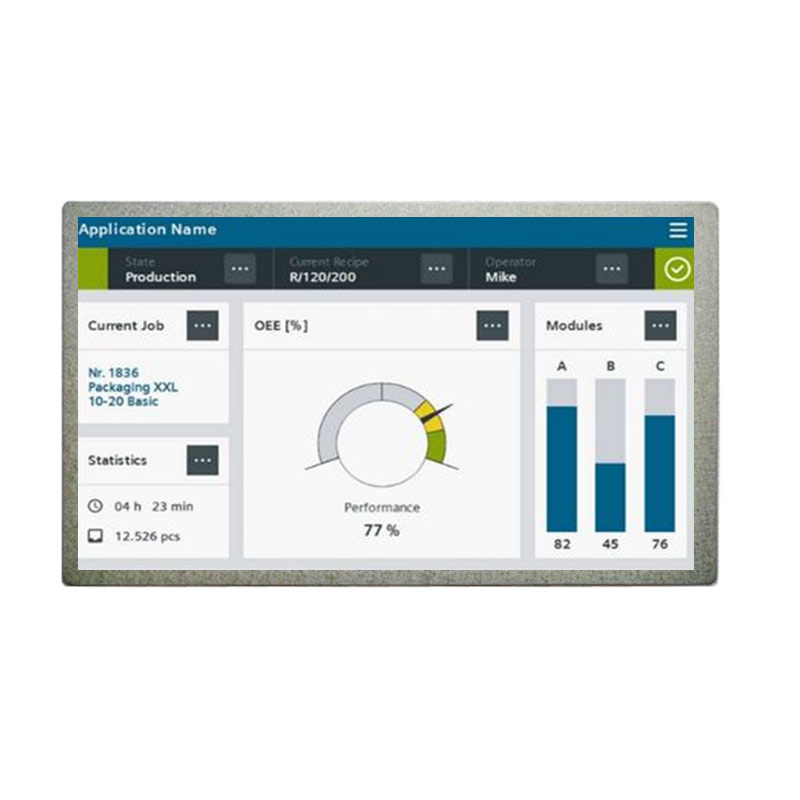

M101GWT9 R3 10.1 Inch 1024×600 LVDS High Brightness 640nits Wide Temperature LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > M101GWT9 R3

M101GWT9 R3 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from IVO, with a built-in WLED backlight, With LED Driver, without touch screen. M101GWT9 R3 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 244(W)×143(H)×12.9(D) mm, viewing area size of 225.72(W)×128.28(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 400/440g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M101GWT9 R3 can provides 640 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. M101GWT9 R3 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

M101GWT9 R3

Brand：

YOURITECH

Size：

10.1 inch"

Resolution：

1024x600

Interface：

LVDS (1 ch,6/8-bit)

Technology：

Transmissive

Brightness：

640cd/m²

Operating Tem：

-30~85°C

Storage Tem：

-40~95°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
