34 Inch 3440×1440 eDP TFT LCD Display LM340UW8-SSC1 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > > LM340UW8-SSC1

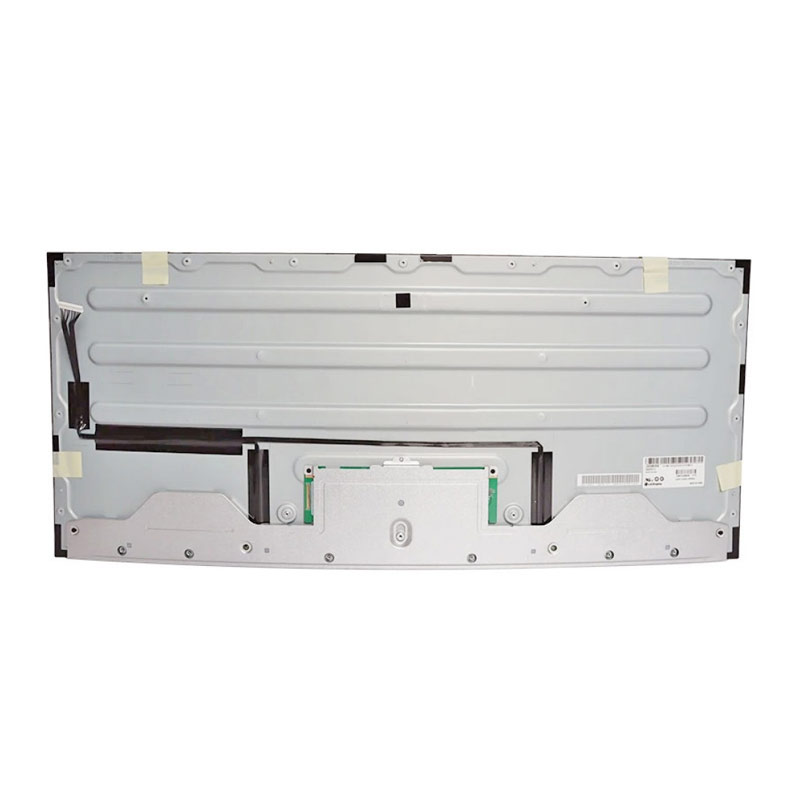

LM340UW8-SSC1 is a 34 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. LM340UW8-SSC1 supports display 3440(RGB)×1440 with aspect ratio of 21:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 799.8(W)×334.8(H) mm, outline size of 809.55(W)×354.7(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 4.51/4.74Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM340UW8-SSC1 can provides 300 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 95% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM340UW8-SSC1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.
Technical Data:
Part #：
LM340UW8-SSC1
Brand：
Size：
34 inch"
Resolution：
3440x1440
Interface：
eDP (4 Lanes)
Technology：
Transmissive
Brightness：
300cd/m²
Operating Tem：
0~50°C
Storage Tem：
-20~60°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
