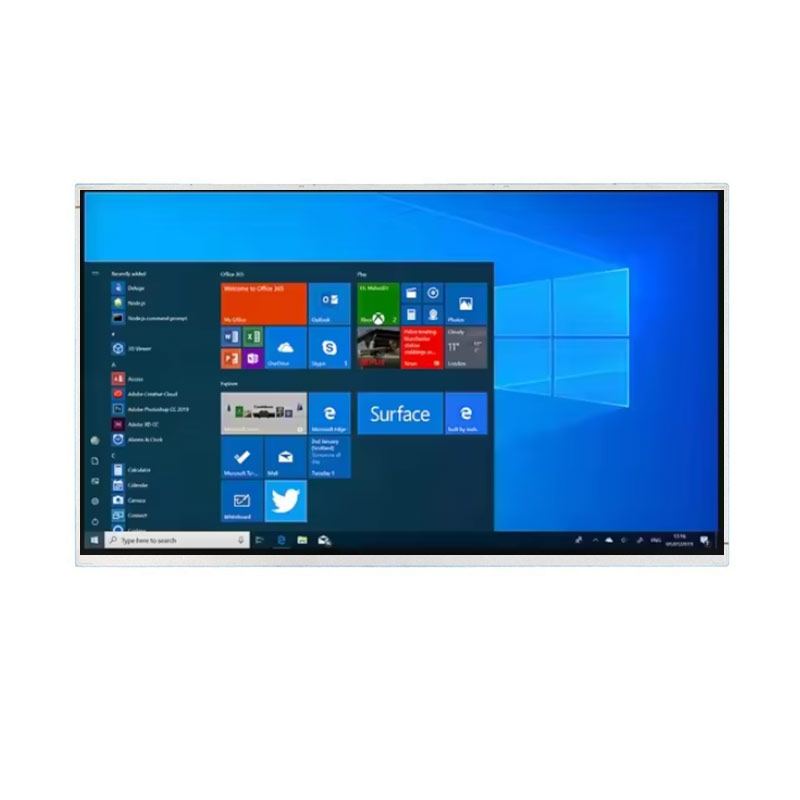

23.8 Inch 4K 3840x2160 LCD Display High Brightness 540nits eDP IPS LCD Module

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > LG Display > LM238WR2-SPE1
LM238WR2-SPE1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 527.04(W)×296.46(H) mm, outline size of 544.7(W)×328.2(H)×14.3(D) mm, viewing area size of 529.7(W)×299.7(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), Reflection 2.0% (Typ.), net weight of 2.19/2.3Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM238WR2-SPE1 can provides 540 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (DCI-P3). This product adopted 14S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 30K hours, external backlight driver is additionally needed. LM238WR2-SPE1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
LM238WR2-SPE1
Brand：
LG Display
Size：
23.8 inch"
Resolution：
3840x2160
Interface：
eDP (4 Lanes)
Technology：
Transmissive
Brightness：
540(Typ.)
Operating Tem：
0~50°C
Storage Tem：
-20~60°C
