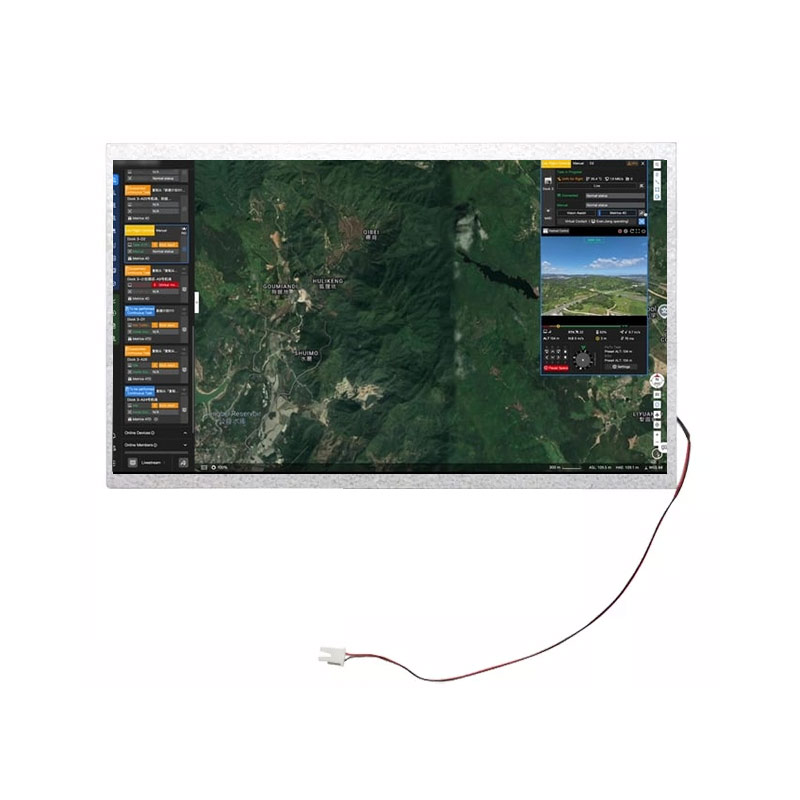

HSD101JFW1-C11 10.1 Inch 1024x600 Transflective Display LVDS Wide Temperature Sunlight Readable LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > HannStar > HSD101JFW1-C11

HSD101JFW1-C11 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 222.72(W)×125.28(H) mm, outline size of 235(W)×143(H)×6.3(D) mm, viewing area size of 226(W)×128.5(H) mm, with surface treament of Hard coating (3H), net weight of 265/275g (Typ./Max.). As a IPS Pro, Normally Black, Transflective LCM product, HSD101JFW1-C11 can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 6S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. HSD101JFW1-C11 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

HSD101JFW1-C11

Brand：

HannStar

Size：

10.1 inch"

Resolution：

1024×600

Interface：

LVDS (1 ch, 8-bit) , 60 pins FPC

Technology：

Transflective

Brightness：

500 cd/m² (Typ.)

Operating Tem：

-30 ~ 85 °C

Storage Tem：

-30 ~ 85 °C
