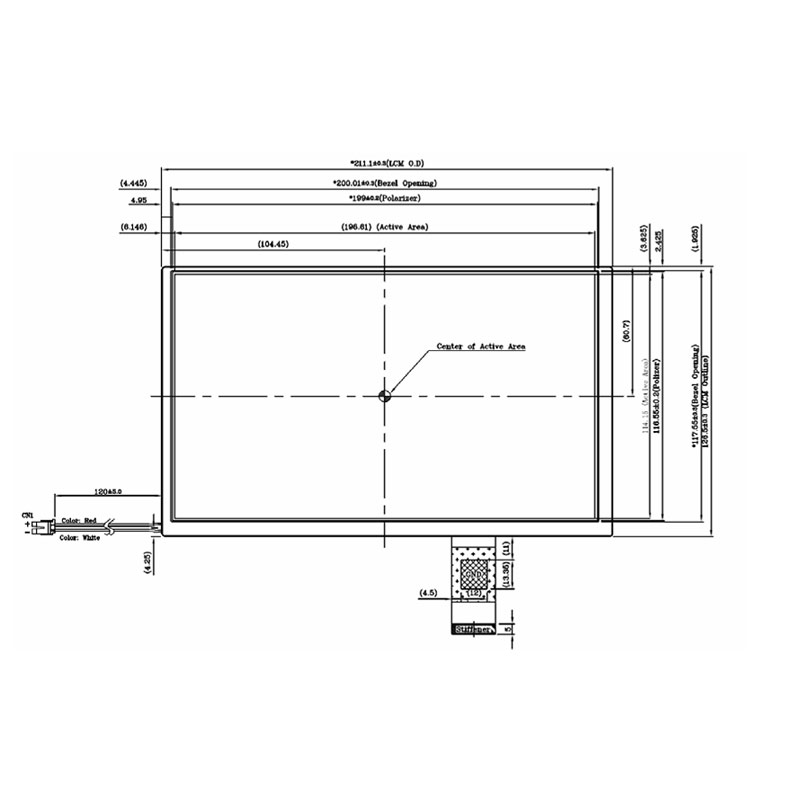

HSD090JFW1-A11 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 196.608(W)×114.15(H) mm, outline size of 211.1(W)×126.5(H)×7.1(D) mm, viewing area size of 200.01(W)×117.55(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 240g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD090JFW1-A11 can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. HSD090JFW1-A11 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

HSD090JFW1-A11

Brand：

HannStar

Size：

9 inch"

Resolution：

1024×600

Interface：

LVDS (1 ch, 8-bit) , 40 pins FPC

Technology：

Transmissive

Brightness：

500 cd/m² (Typ.)

Operating Tem：

-30 ~ 85 °C

Storage Tem：

-30 ~ 85 °C
