GS133FBB-N10-6RA0 13 Inch 5760×3240 IPS eDP Wide Temperature TFT LCD Display For 3D Printer

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > BOE > GS133FBB-N10-6RA0

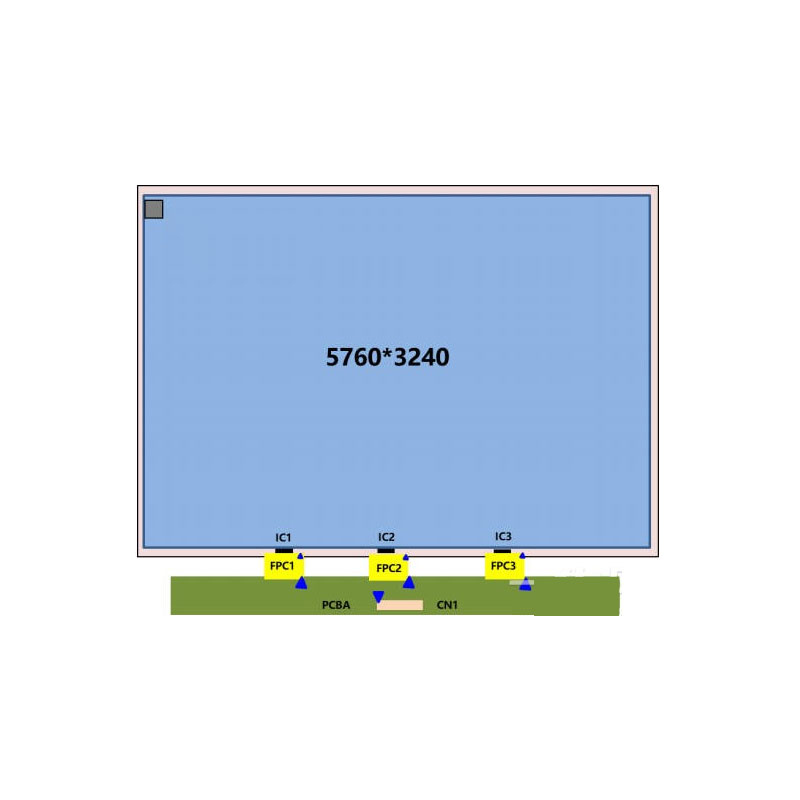

GS133FBB-N10-6RA0 supports display 5760×3240 with aspect ratio of 16:9 (W:H), whose pixels are arranged in Rectangle, it's pixel density is 508 PPI. As for mechanical detail, it features active area of 288(W)×162(H) mm, outline size of 297.56(W)×173.74(H)×1.25(D) mm, utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, GS133FBB-N10-6RA0 can provides 300:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product have no backlight. GS133FBB-N10-6RA0 utilizes eDP (4 Lanes) as it's signal inputting systerm Connector. It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

GS133FBB-N10-6RA0

Brand：

BOE

Size：

13.3 inch"

Resolution：

5760x3240

Interface：

5760x3240

Technology：

Transmissive

Brightness：

Operating Tem：

-30~80°C

Storage Tem：

-30~80°C
