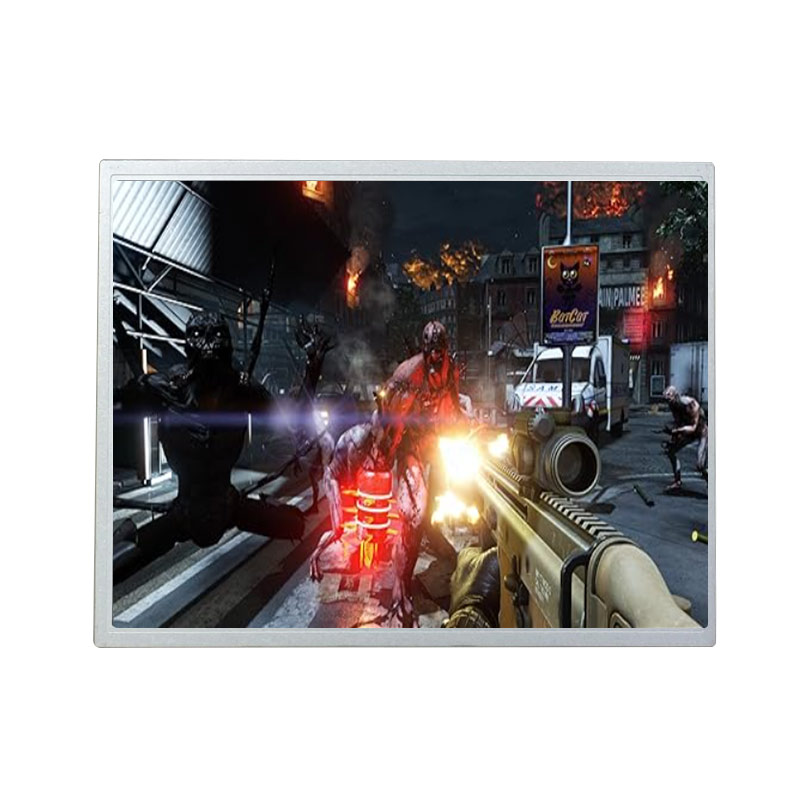

15 Inch 1024×768 eDP TFT LCD Display G150XJE-E01 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > INNOLUX > G150XJE-E01

G150XJE-E01 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×9.6(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 942/980g (Typ./Max.). As a NPVA, Normally Black, Transmissive LCM product, G150XJE-E01 can provides 400 cd/m² display brightness 2500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. G150XJE-E01 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

G150XJE-E01

Brand：

INNOLUX

Size：

15.0 inch"

Resolution：

1024×768

Interface：

eDP (1 Lane) , eDP1.2 , 30 pins Connector

Technology：

Transmissive

Brightness：

400 cd/m² (Typ.)

Operating Tem：

-20~70°C

Storage Tem：

-30~70°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
