27 Inch 4K LCD Display 3840x2160 High Brightness 1000nits eDP IPS LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET270UH02-R

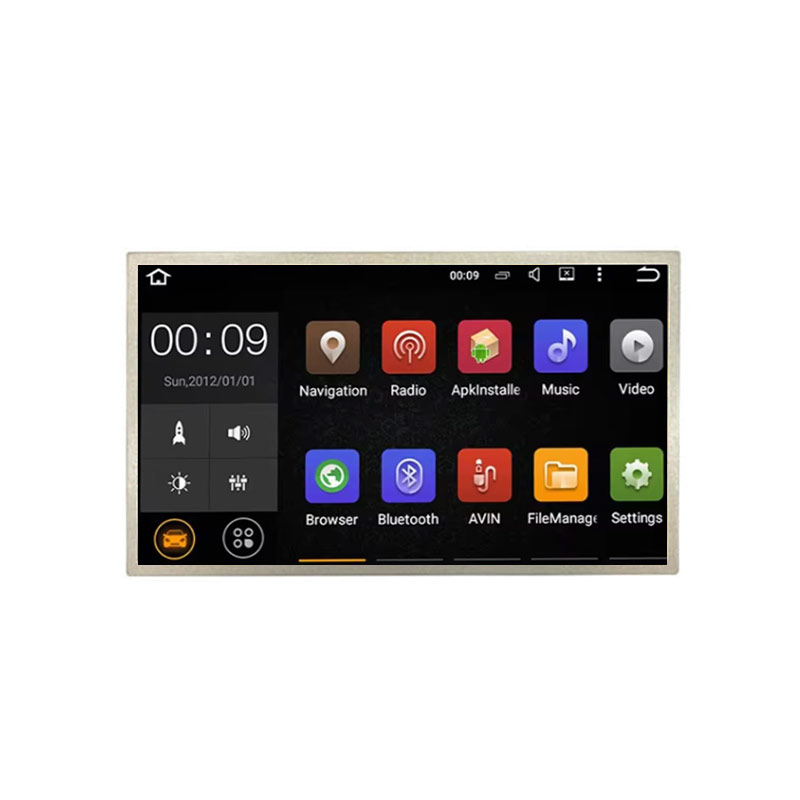

ET270UH02-R is a 27-inch diagonal LCD display module featuring IPS technology and a transmissive display mode. It supports a resolution of 3840 × 2160 (4K UHD) with a 16:9 aspect ratio, delivering sharp image quality and wide viewing angles of 89° in all directions (L/R/U/D). The panel adopts an eDP interface for signal transmission and provides a typical brightness of 1000 cd/m², making it suitable for high-brightness and professional display applications. It features an active area of 596.736 (W) × 335.664 (H) mm and an outline dimension of 628.8 × 367.1 mm. ET270UH02-R operates within a temperature range of 0 to 50°C, supports storage temperatures from −20 to 60°C, and does not include touch functionality.

Technical Data:

Part #：

ET270UH02-R

Brand：

YOURITECH

Size：

27 inch"

Resolution：

3840x2160

Interface：

eDP

Technology：

Transmissive

Brightness：

1000(Typ.)

Operating Tem：

0~50°C

Storage Tem：

-20~60°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
