23.1 Inch 1920x158 Stretched Bar Display IPS High Brightness 700nits LVDS TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET231BA01-YF

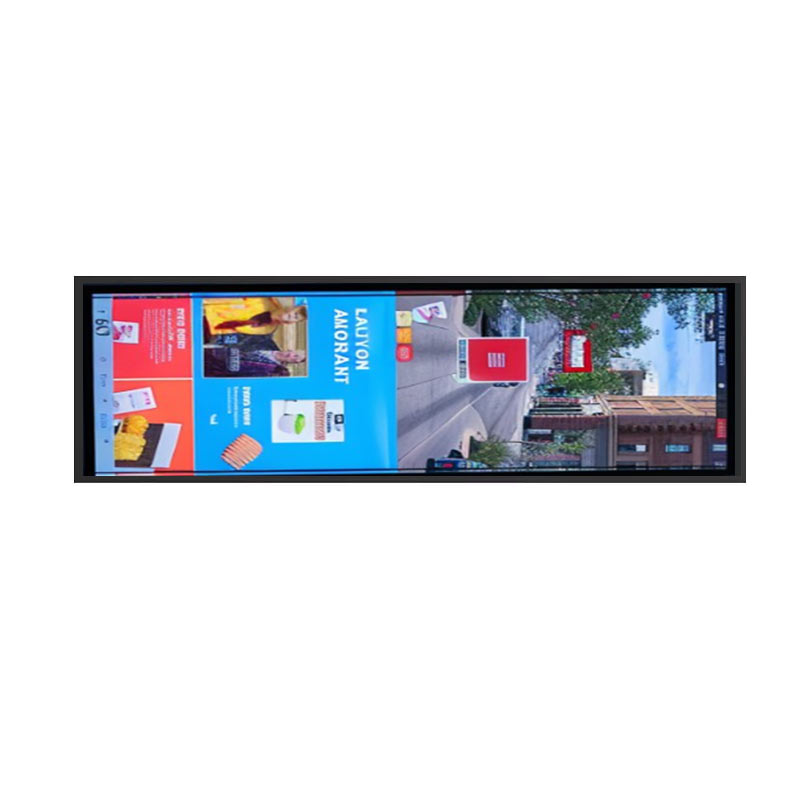

ET231BA01-YF is a 23.1-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel. It supports a 1920 × 158 resolution, providing high-definition content in a wide-format, narrow-height form factor. The display has an active area of 585.56 (W) × 48.18 (H) mm and an outline dimension of 608 (W) × 70 (H) mm, suitable for digital signage, information bars, and industrial applications. ET231BA01-YF uses an LVDS interface and delivers a typical brightness of 700 cd/m², ensuring clear visibility even in bright environments. With wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast from multiple perspectives. The module operates within 0 to 50°C and can be stored between –20 to 60°C, and it supports touch functionality for interactive applications.

Technical Data:

Part #：

ET231BA01-YF

Brand：

YOURITECH

Size：

23.1 inch"

Resolution：

1920x158

Interface：

LVDS

Technology：

Transmissive

Brightness：

700(Typ.)

Operating Tem：

0~50°C

Storage Tem：

-20~60°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
