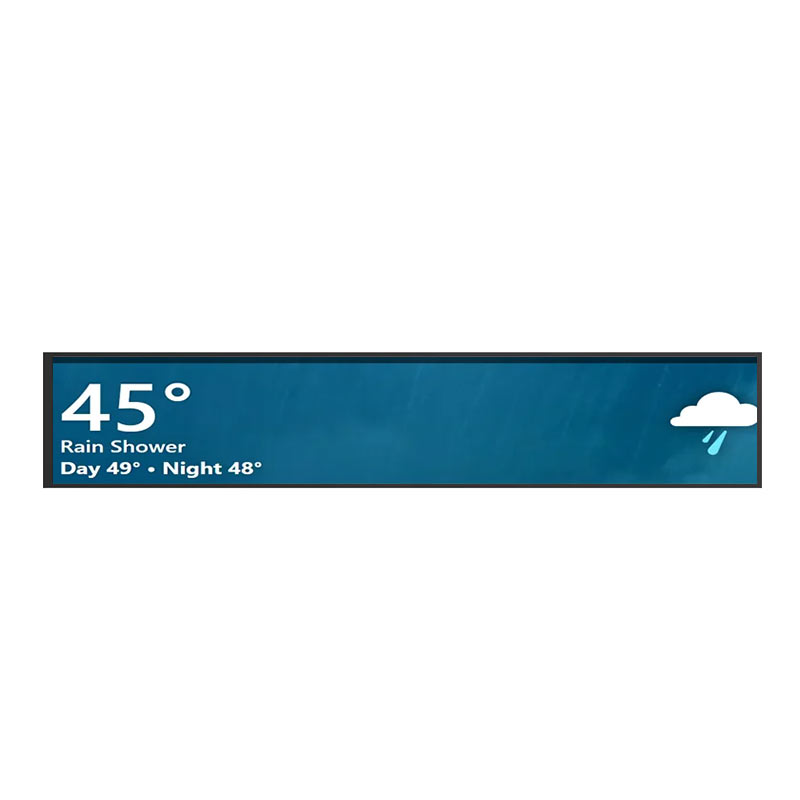

21.3 Inch 1920x317 Stretched Bar Display High Brightness 1000nits LVDS TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET213BA01-YF

ET213BA01-YF is a 21.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive panel. It supports a 1920 × 317 resolution, providing a high-brightness wide-format display ideal for horizontal information presentation, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 531.36 (W) × 87.4 (H) mm and an outline dimension of 570.62 (W) × 124.6 (H) mm, enabling integration into elongated and space-efficient system designs. ET213BA01-YF adopts an LVDS interface and delivers a typical brightness of 1000 cd/m², ensuring excellent visibility even in brightly lit environments. With wide viewing angles of 85° left/right and 80° up/down, it maintains good color and contrast consistency across multiple viewing positions. The module is designed for reliable operation within a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is ideal for applications such as industrial control panels, transportation displays, digital signage, and other wide-format embedded display solutions.

Technical Data:

Part #：

ET213BA01-YF

Brand：

YOURITECH

Size：

21.3 inch"

Resolution：

1920x317

Interface：

LVDS

Technology：

Transmissive

Brightness：

1000(Typ.)

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
