17 Inch 1280×1024 LVDS High Brightness 1500nits Wide Temperature LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET170SX01-RS

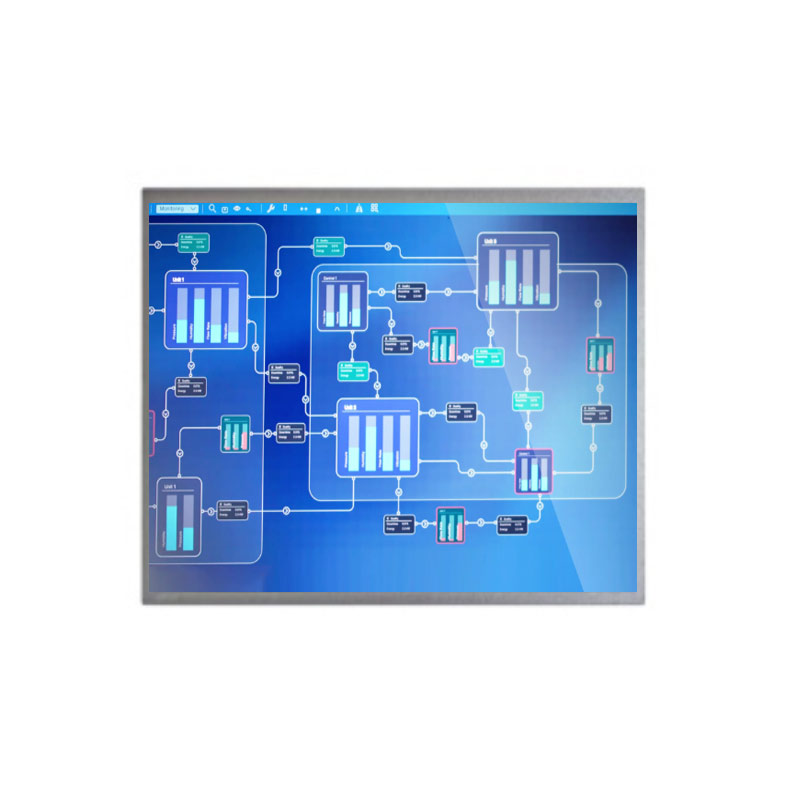

ET170SX01-RS is a 17-inch diagonal TFT-LCD display product with a transmissive display mode. ET170SX01-RS supports a resolution of 1280×1024 with a standard aspect ratio, delivering clear and stable image performance, and utilizes an LVDS interface for signal transmission. It features an active area of 337.92(W)×270.336(H) mm and an outline size of 358.5(W)×296.5(H) mm. The display provides a high brightness of 1500 cd/m², suitable for high ambient light and automotive environments, and offers viewing angles of 80/80/70/70 (L/R/U/D). Designed for wide-temperature applications, it operates within a temperature range of -30 to 85°C and can be stored at -30 to 85°C. This model does not include a touch function.

Technical Data:

Part #：

ET170SX01-RS

Brand：

YOURITECH

Size：

17 inch"

Resolution：

1280x1024

Interface：

LVDS

Technology：

Transmissive

Brightness：

1500nits

Operating Tem：

-30~85°C

Storage Tem：

-30~85°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
