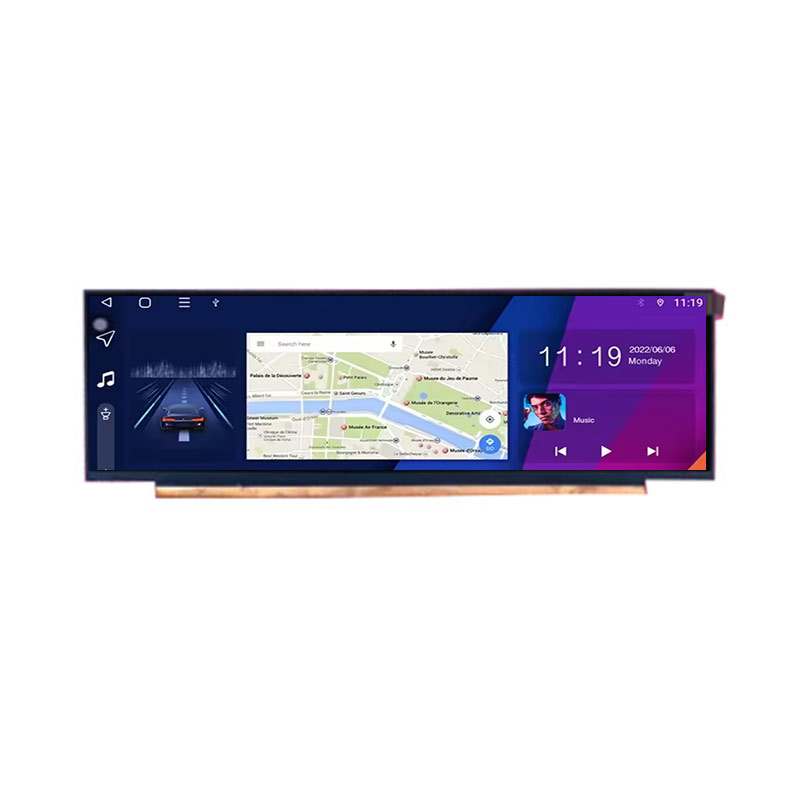

14.1 Inch High Brightness 1000nits 3840x1100 LVDS TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET141BA01-R

ET141BA01-R is a 14.1-inch high-brightness TFT LCD display featuring a transmissive design and LVDS interface. It supports an ultra-wide resolution of 3840 × 1100 with 85° viewing angles in all directions. The panel delivers a typical brightness of 1000 cd/m², with an active area of 344.218 × 98.604 mm and an outline dimension of 350.52 × 118.65 mm. It operates reliably from 0 to 60 °C, supports storage temperatures down to −20 °C, and does not include touch functionality.

Technical Data:

Part #：

ET141BA01-R

Brand：

YOURITECH

Size：

14.1 inch"

Resolution：

3840x1100

Interface：

LVDS

Technology：

Transmissive

Brightness：

1000(Typ.)

Operating Tem：

0~60°C

Storage Tem：

-20~65°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
