12.3 Inch 1920x720 IPS 1200nits High Brightness -30~80°C Wide Temperature LVDS Stretched Bar Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET123BA10-T

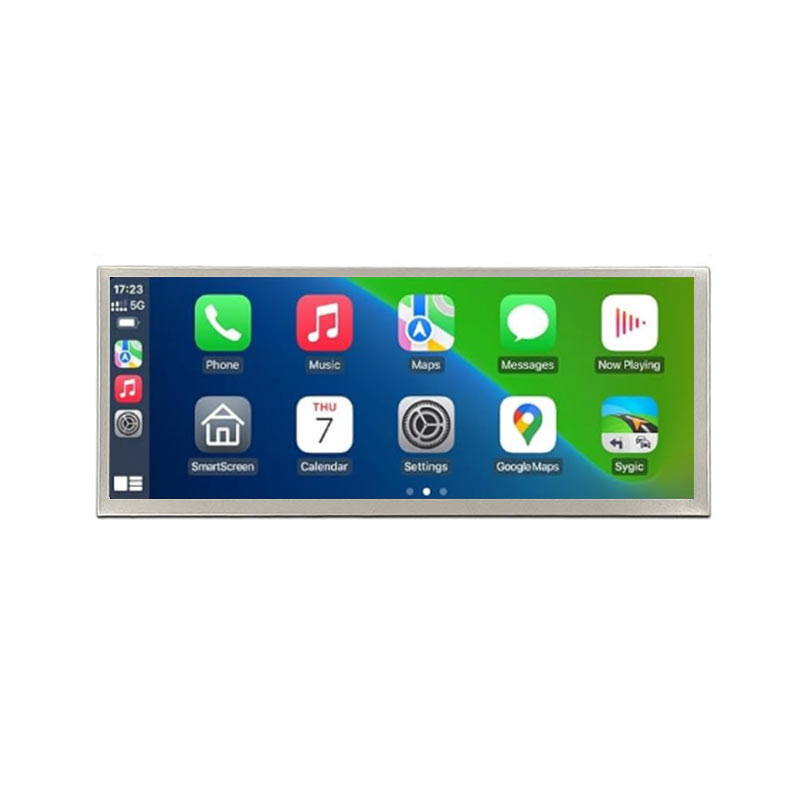

ET123BA10-T is a 12.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 720 resolution, providing a high-definition wide-format display ideal for detailed graphical and information-rich applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 292.03 (W) × 109.51 (H) mm and an outline dimension of 310 (W) × 128 (H) mm, allowing for straightforward integration into industrial and transportation system designs. ET123BA10-T adopts an LVDS interface and delivers a typical brightness of 1200 cd/m², ensuring excellent readability in bright ambient and semi-outdoor environments. With wide viewing angles of 88° in all directions (L/R/U/D), it maintains consistent color and contrast performance across multiple viewing positions. The module is designed for reliable operation over a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is well suited for applications such as industrial control panels, automotive or transportation displays, outdoor signage, and other wide-temperature embedded display solutions.

Technical Data:

Part #：

ET123BA10-T

Brand：

YOURITECH

Size：

12.3 inch"

Resolution：

1920x720

Interface：

LVDS

Technology：

Transmissive

Brightness：

1200(Typ.)

Operating Tem：

-20~70℃

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
