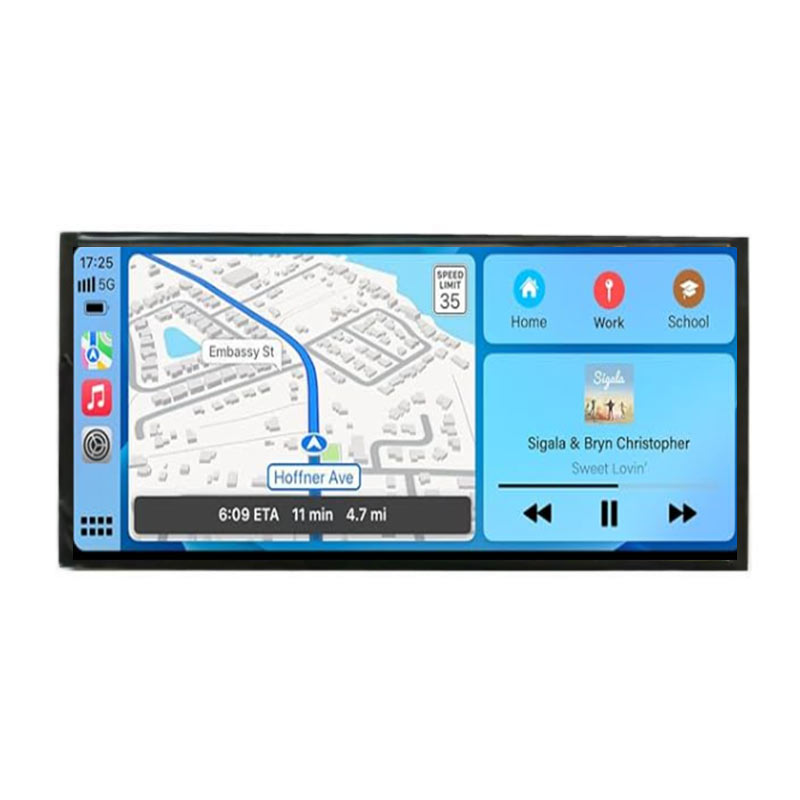

10.4 Inch 1366x374 IPS Stretched Bar Display 500nits High Brightness LVDS TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET104BA01-YH

ET104BA01-YH is a 10.4-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1366 × 374 resolution, providing a wide bar-type display format optimized for information-dense and elongated user interfaces, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 256.125 (W) × 65 (H) mm and an outline dimension of 276 (W) × 85 (H) mm, enabling slim and space-efficient mechanical integration. ET104BA01-YH adopts an LVDS interface and delivers a typical brightness of 500 cd/m², ensuring good visibility under high ambient lighting conditions. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast performance from nearly any viewing position. The module is designed for stable operation within a 0 to 50°C operating temperature range and a –20 to 60°C storage temperature range. This model does not support touch functionality and is well suited for applications such as industrial instruments, control panels, smart appliances, and transportation or information display systems.

Technical Data:

Part #：

ET104BA01-YH

Brand：

YOURITECH

Size：

10.4 inch"

Resolution：

1366x374

Interface：

LVDS

Technology：

Transmissive

Brightness：

500(Typ.)

Operating Tem：

0~50°C

Storage Tem：

-20~60°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
