10.1 Inch 1280x800 Wide Temperature TFT LCD Display EK79202DA MIPI -30°C to 85°C High Brightness Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET101WX20-K

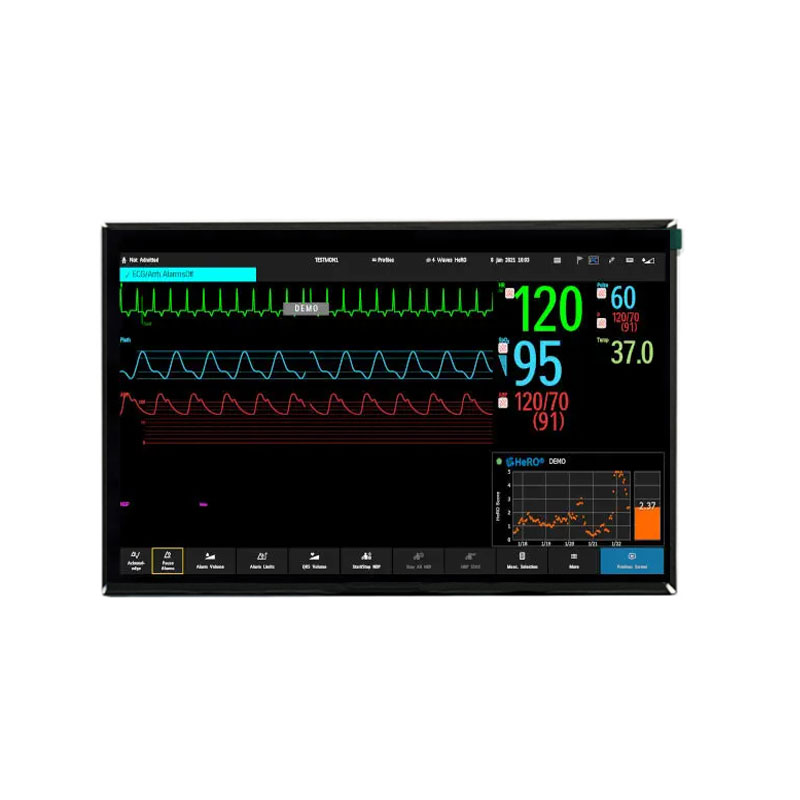

ET101WX20-K is a 10.1-inch wide-temperature TFT LCD display with a 1280x800 resolution and a MIPI interface (EK79202DA controller) for high-speed, low-power data transmission. Designed for industrial and outdoor applications, it offers a brightness of 550 nits, ensuring clear visibility under standard lighting conditions, along with a free viewing angle (L/R/U/D) for consistent image quality from any perspective. The display features an active area of 216.96x135.60 mm within a slim outline dimension of 229.06x148.7x2.56 mm and operates reliably across a temperature range of -30℃ to 85℃, making it suitable for harsh environments. This non-touch module combines durability with high-definition performance for superior functionality in demanding settings.

Technical Data:

Part #：

ET101WX20-K

Brand：

YOURITECH

Size：

10.1 Inch"

Resolution：

1280x800

Interface：

MIPI

Technology：

Brightness：

550nits

Operating Tem：

-30~85°C

Storage Tem：

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
