10.1 Inch High Brightness 1400nits Wide Temperature LCD Display 1280×720 LVDS -30°C to 85°C TFT LCD Display With Capacitive Touch

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET101HD01-KD

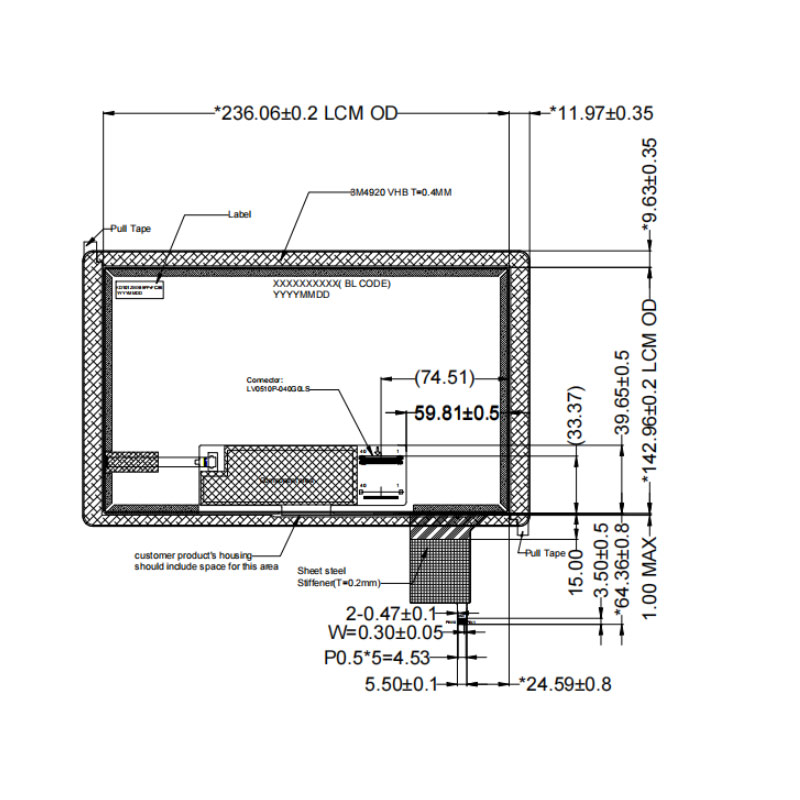

The ET101HD01-KD is a 10.1-inch wide-temperature, high-brightness TFT LCD display module. It features a resolution of 1280x720, utilizes an LVDS interface, and delivers a high brightness of 1400 nits. The module supports a wide operating temperature range of -30°C to 85°C, with the same range for storage. Its active display area measures 224.64x126.36 mm, housed within an outline dimension of 260x160 mm. The display provides symmetrical and wide viewing angles of 85/85/85/85 (L/R/U/D) and does not incorporate touch functionality.

Technical Data:

Part #：

ET101HD01-KD

Brand：

YOURITECH

Size：

10.1 Inch"

Resolution：

1280x720

Interface：

LVDS

Technology：

Transmissive

Brightness：

1400nits

Operating Tem：

-30~85°C

Storage Tem：

-30~85°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
