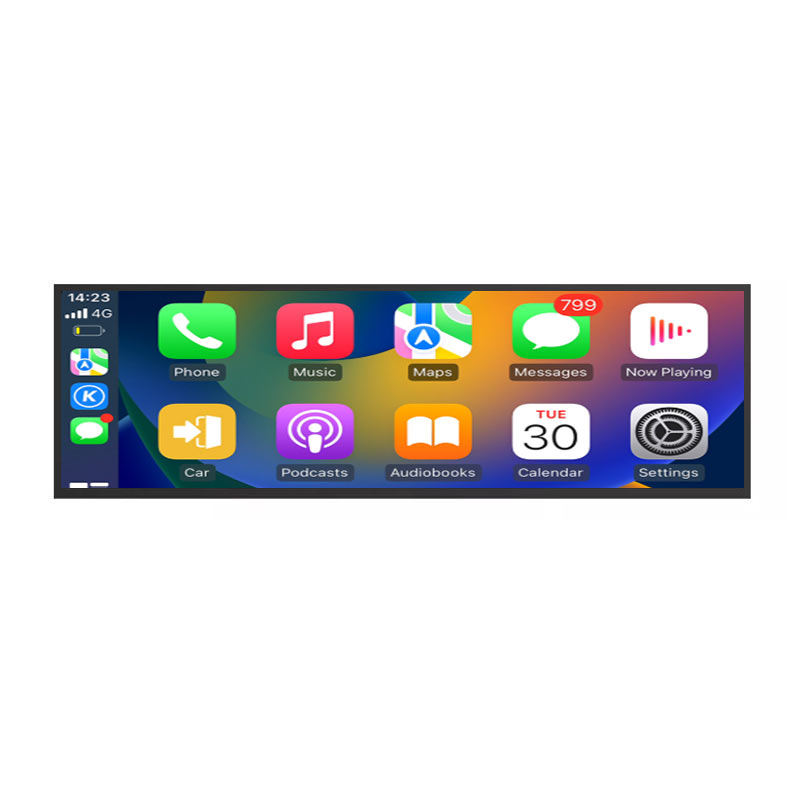

9.9 Inch 1024x273 IPS Stretched Bar Display 500nits High Brightness LVDS TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET099BA01-YF

ET099BA01-YF is a 9.9-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1024 × 273 resolution, delivering an ultra-wide bar-type display format optimized for compact information presentation, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 245.76 (W) × 55 (H) mm and an outline dimension of 270 (W) × 75 (H) mm, making it suitable for slim and elongated industrial designs. ET099BA01-YF adopts an LVDS interface and provides a typical brightness of 500 cd/m², ensuring good readability under high ambient lighting conditions. With extra-wide viewing angles of 89° in all directions (L/R/U/D), it offers consistent color and contrast from virtually any viewing position. The module is designed for stable operation within a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is ideal for applications such as industrial equipment displays, transportation systems, smart appliances, and digital information panels.

Technical Data:

Part #：

ET099BA01-YF

Brand：

YOURITECH

Size：

9.9 inch"

Resolution：

1024x273

Interface：

LVDS

Technology：

Transmissive

Brightness：

500(Typ.)

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C
