0.96 Inch PMOLED Display 64×128 SPI/I²C OLED Display For Healthcare & Medical Display Solution

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET096PM01-JD

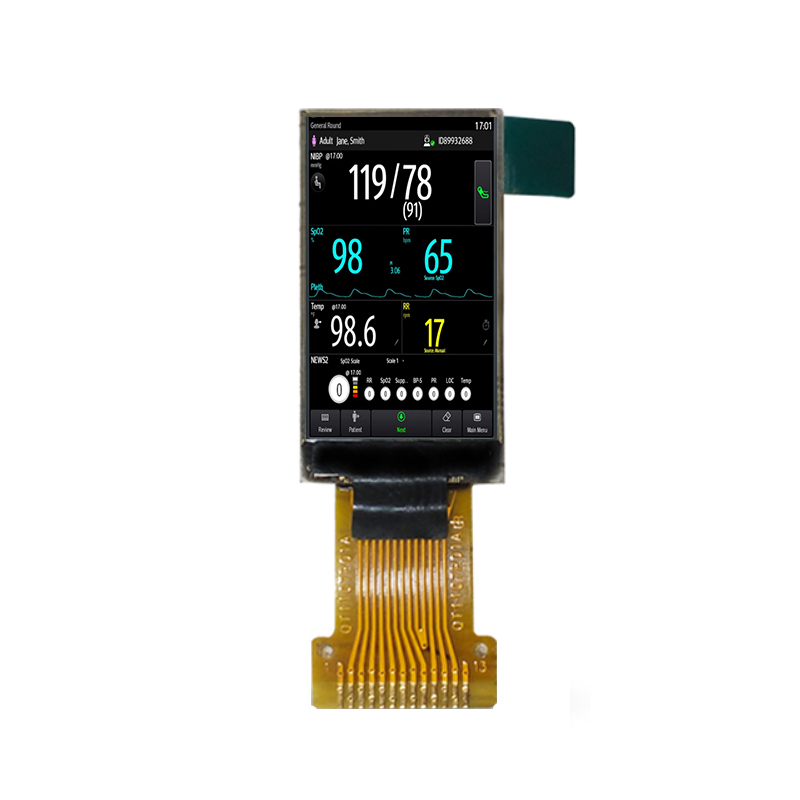

ET096PM01-JD is a 0.96-inch diagonal PMOLED display module designed for healthcare and medical display solutions. ET096PM01-JD supports a resolution of 64×128 pixels with SPI and I²C interface options, providing flexible connectivity for embedded system integration. Featuring PMOLED display technology, it offers an active area of 10.86(W)×21.74(H) mm and an outline dimension of 14(W)×28(H) mm. The display provides a typical brightness of 160 cd/m² and wide viewing angles of 80° in the left, right, up, and down directions. ET096PM01-JD operates within a temperature range of -40°C to 70°C and supports storage temperatures from -40°C to 85°C. With a compact, non-touch design, this PMOLED module is suitable for medical instruments, healthcare equipment, portable diagnostic devices, and other embedded display applications.
Technical Data:
Part #：
ET096PM01-JD
Brand：
YOURITECH
Size：
0.96 Inch"
Resolution：
64×128
Interface：
SPI/I²C
Technology：
PM-OLED
Brightness：
160(Typ.)
Operating Tem：
-40~70°C
Storage Tem：
-40~85°C
