6.9 Inch IPS 280x1424 Stretched Bar Display OTA7290B MIPI 4 LANE High Brightness Bar LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET070WQ01-T

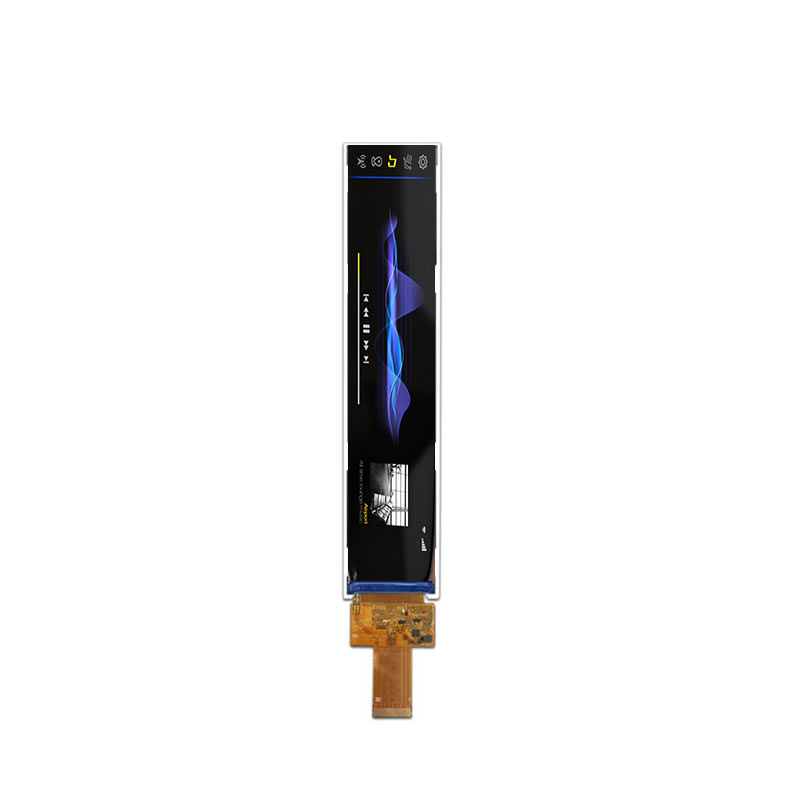

ET070WQ01-T is a 6.9-inch stretched bar IPS LCD display featuring a resolution of 280x1424 and utilizing the OTA7290B controller with a MIPI 4-LANE interface. This high-brightness bar LCD display offers a brightness level of 500 cd/m², making it well-suited for applications requiring enhanced visibility. It has an outline dimension of 38.2mm (W) x 181.47mm (H) x 3.45mm (D) and an active display area measuring 33.6mm (W) x 170.88mm (H). The viewing angles are specified as IPS, ensuring wide visibility from multiple directions. Specific details regarding operation and storage temperatures are not provided.

Technical Data:

Part #：

ET070WQ01-T

Brand：

YOURITECH

Size：

6.9 inch"

Resolution：

280x1424

Interface：

MIPI 4 LANE

Technology：

Brightness：

500cd/m2

Operating Tem：

Storage Tem：

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
