6.8 Inch 480x1280 Stretched Bar DisplayIPS MIPI 600nits High Brightness TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET068BA03-T

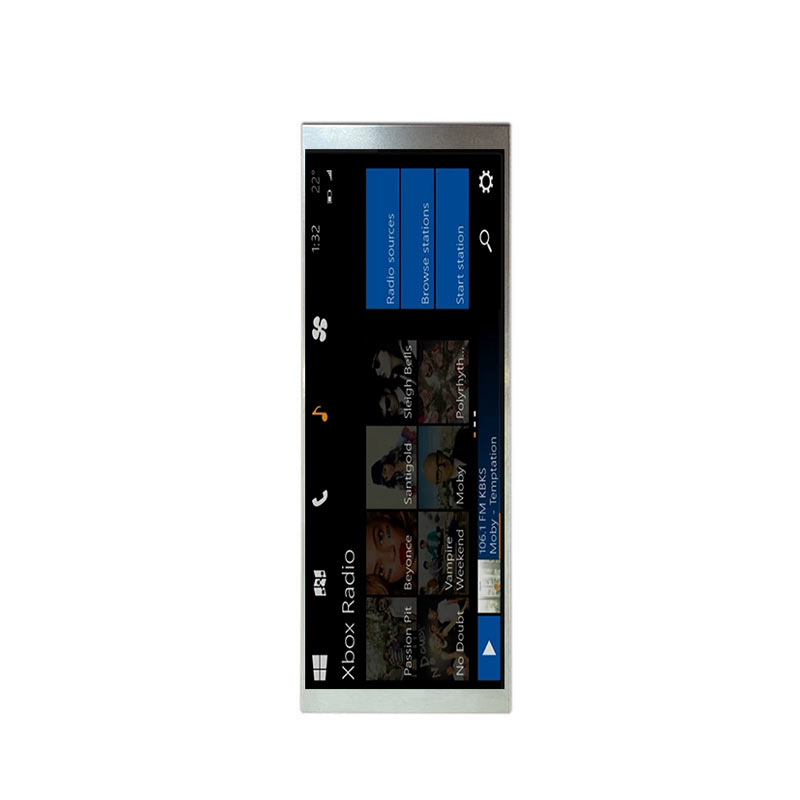

ET068BA03-T is a 6.8-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 480 × 1280 pixels and utilizes a MIPI interface for high-speed signal transmission. The display offers an active area of 66.7 (W) × 181 (H) mm, making it suitable for tall, vertical-oriented applications. With IPS technology, it provides wide and stable viewing angles in all directions, ensuring consistent image quality. The typical brightness reaches 600 nits, delivering clear readability even in bright ambient-light conditions. ET068BA03-T is designed for reliable operation across a broad temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it ideal for high-brightness stretched bar display applications such as industrial terminals, smart devices, and embedded systems.

Technical Data:

Part #：

ET068BA03-T

Brand：

YOURITECH

Size：

6.8 inch"

Resolution：

480x1280

Interface：

MIPI BIT Interface

Technology：

Normally black

Brightness：

600-1000Cd/㎡

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
