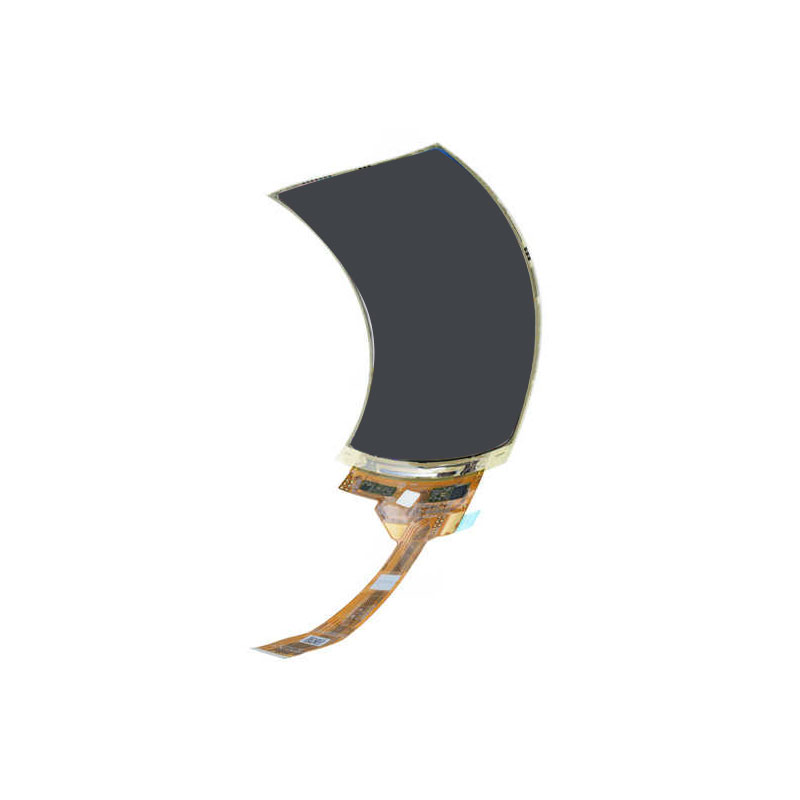

6.5 Inch Flexible AMOLED 1080x2400 MIPI High Contrast RM692E5 OLED Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET065WF01-KT

The ET065WF01-KT is a 6.5-inch flexible AMOLED display designed for high-contrast, vibrant visuals and advanced applications. It features a resolution of 1080x2400, offering sharp and detailed images with a tall, narrow aspect ratio. The display has an active area of 69.55mm x 144.26mm and compact outline dimensions of 71.45mm x 156.64mm x 0.29mm, making it suitable for flexible and space-efficient designs. Operating in AMOLED mode, the display delivers deep blacks and rich colors, enhancing the viewing experience. With a brightness of 500 nits, it ensures clear visibility even in moderately bright environments. The viewing angle is full view, offering excellent clarity from any direction. The panel utilizes a MIPI interface for efficient, high-speed data transfer. The ET065WF01-KT operates within a temperature range of -20°C to 70°C for operation and -30°C to 80°C for storage, ensuring reliable performance in a variety of conditions. This display does not include touch functionality.

Technical Data:

Part #：

ET065WF01-KT

Brand：

YOURITECH

Size：

6.5 Inch"

Resolution：

1080x2400

Interface：

MIPI

Technology：

AM-OLED

Brightness：

500nits

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
