6.4 Inch 1080×2340 MIPI -40°C to 70°C High Brightness 500nits AMOLED Display With On-Cell Touch Wide Temperature OLED Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET064WF01-HG

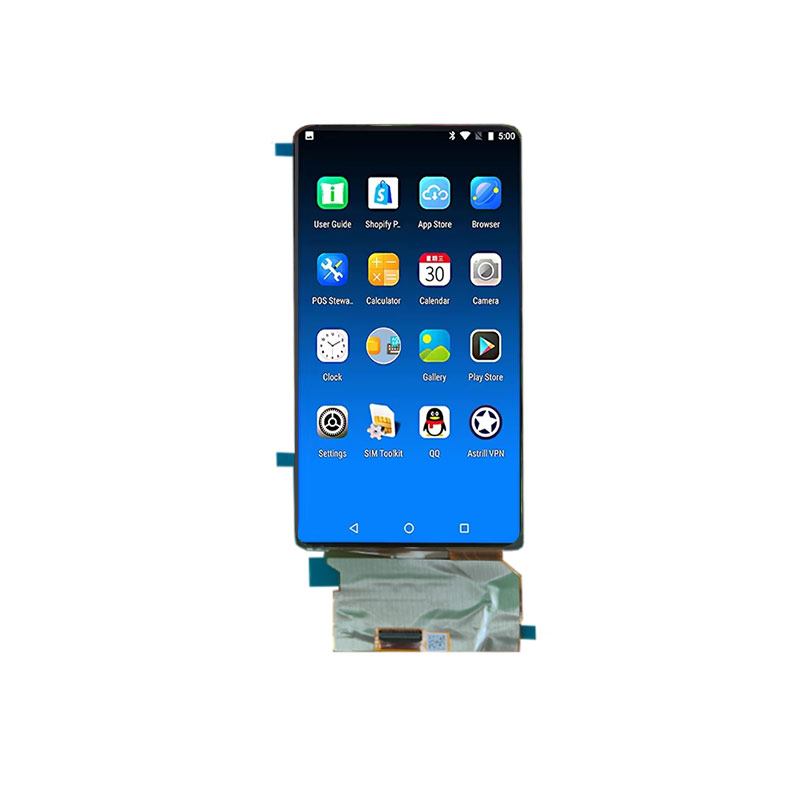

The ET064WF01-HG is a 6.4-inch wide-temperature, high-brightness AMOLED display module. It features a resolution of 1080x2340, a MIPI interface, and delivers a brightness of 500 nits. Designed for a wide operating temperature range of -40°C to 70°C, with a storage range of -50°C to 80°C, its active display area measures 68.04x147.42 mm, housed within an outline dimension of 69.84x150.42 mm. The screen provides symmetrical viewing angles of 80/80/80/80 (L/R/U/D) and incorporates an On-Cell touch function.

Technical Data:

Part #：

ET064WF01-HG

Brand：

YOURITECH

Size：

6.4 Inch"

Resolution：

1080×2340

Interface：

MIPI

Technology：

AM-OLED

Brightness：

500nits

Operating Tem：

-40~70°C

Storage Tem：

-50~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
