6 Inch OLCD Display 1080×2160 MIPI High Brightness 550 nits AMOLED Display With On-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET060AM01-RT

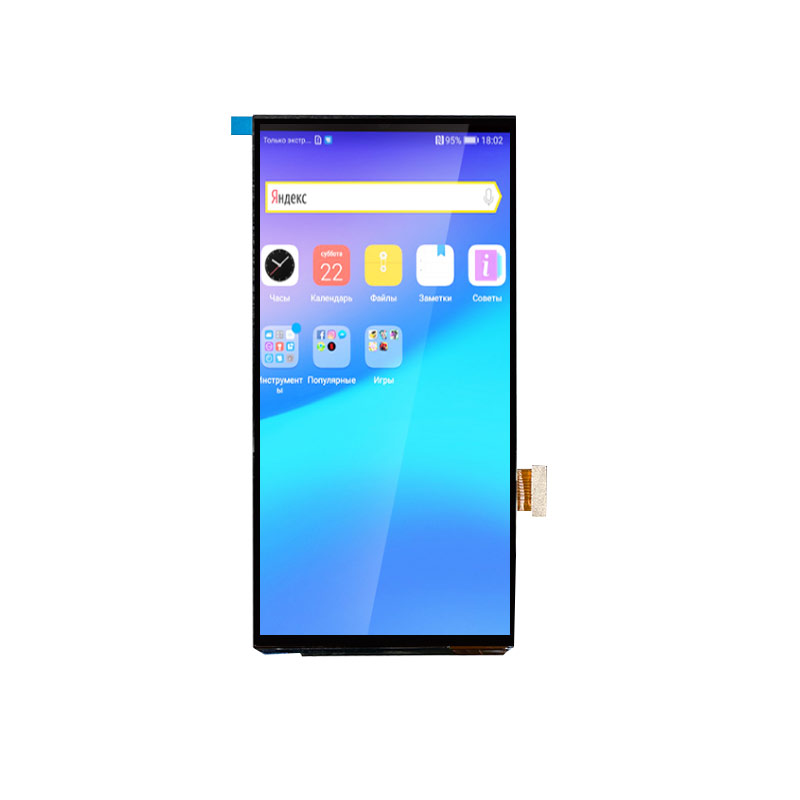

ET060AM01-RT is a 6.0 inch diagonal AMOLED display module product, it self-emitting. ET060AM01-RT supports display 1080×2160 (FHD+) resolution with aspect ratio of 1:2 (W), delivering vivid colors, high contrast, and exceptional image quality. The module adopts a MIPI interface and integrates advanced On-Cell Touch technology for enhanced touch sensitivity and a slimmer structure. It features an outline size of 70.066(W) × 142.297(H) mm and can provide up to 550 nits display brightness, ensuring excellent readability in various lighting conditions. Benefiting from AMOLED technology, ET060AM01-RT offers wide viewing angles, fast response time, and superior visual performance. It is designed to operate within a temperature range of -20°C to +70°C, making it suitable for industrial handheld devices, smart terminals, medical equipment, and other high-performance display applications.

Technical Data:

Part #：

ET060AM01-RT

Brand：

YOURITECH

Size：

6 Inch"

Resolution：

1080×2160

Interface：

MIPI

Technology：

AM-OLED

Brightness：

550 nits

Operating Tem：

-20~70°C

Storage Tem：

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
