5 inch OLED display MIPI IPS 720x1280 AMOLED Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET050HD06-Z

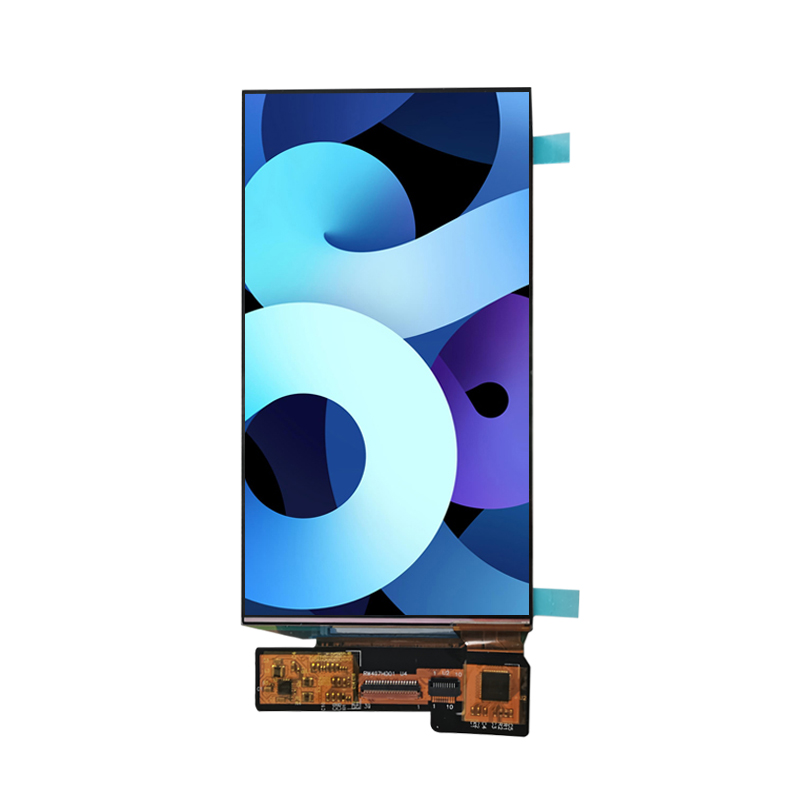

ET050HD06-Z is a 5.0 inch diagonal AMOLED display module product, it self-emitting. ET050HD06-Z supports display 720×1280 (HD) resolution with aspect ratio of 9:16 (W), delivering vivid colors and excellent image quality. It features an active area of 61.884(W) × 110.016(H) mm and an outline size of 64.12(W) × 116.72(H) mm. ET050HD06-Z adopts a MIPI interface and can provide 350 cd/m² display brightness, with a viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from all directions. Benefiting from AMOLED technology, the module offers high contrast, fast response time, and outstanding visual performance. It is designed to operate within a temperature range of -20°C to +60°C and can be stored at temperatures from -20°C to +70°C, making it suitable for industrial equipment, handheld devices, and smart display applications.

Technical Data:

Part #：

ET050HD06-Z

Brand：

YOURITECH

Size：

5 inch"

Resolution：

720x1280

Interface：

MIPI

Technology：

Brightness：

Operating Tem：

Storage Tem：

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
