5 Inch Wide Temperature LCD Display 480×854 TTL -30°C to 70°C TFT LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET050HD04-T

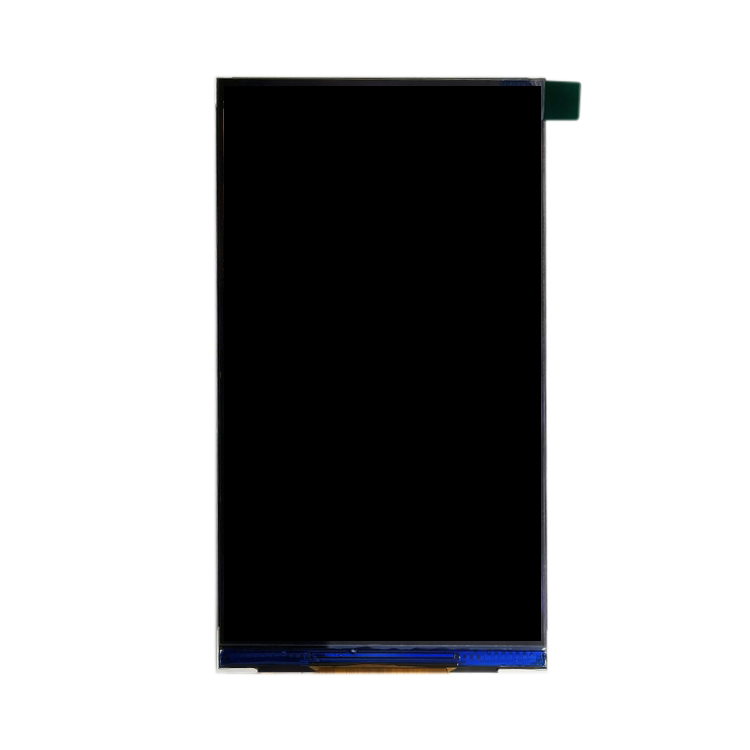

ET050HD04-T is a 5-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 480×854 with a TTL interface, offering an active area of 62.06(W) × 110.42(H) mm and an outline dimension of 66.4(W) × 120.05(H) mm. The display provides a typical brightness of 400 cd/m² and wide viewing angles of 85° in all directions (L/R/U/D). Designed for wide temperature operation, it functions from -30°C to 70°C and can be stored between -40°C and 80°C, and it does not include a touch function.
Technical Data:
Part #：
ET050HD04-T
Brand：
YOURITECH
Size：
5 inch"
Resolution：
480x854
Interface：
TTL
Technology：
Transmissive
Brightness：
400(Typ.)
Operating Tem：
-30~70°C
Storage Tem：
-40~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
