4.6 Inch 320×960 MIPI -30°C to 85°C High Brightness 500nits Wide Temperature LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET046BA10-T

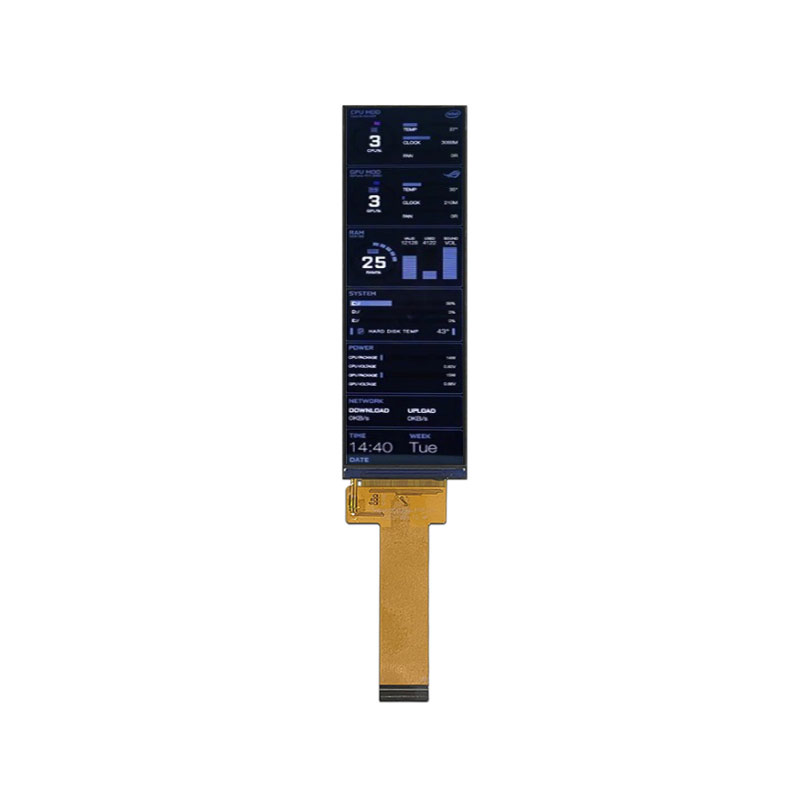

ET046BA10-T is a 4.6-inch diagonal TFT-LCD display module, featuring a transmissive display mode. ET046BA10-T supports a resolution of 320×960, delivering clear and sharp image performance. It adopts a MIPI interface for high-speed and reliable signal transmission, with pixels arranged to ensure stable visual output. The module features an active area of 36.77(W) × 110.3(H) mm and an outline size of 39.47(W) × 116.95(H) mm. ET046BA10-T provides a typical brightness of 500 cd/m² and supports wide viewing angles of 85° in all directions (L/R/U/D). Designed for wide temperature environments, it operates from -30°C to 85°C with the same storage range, and it does not include a touch function.
Technical Data:
Part #：
ET046BA10-T
Brand：
YOURITECH
Size：
4.6 inch"
Resolution：
320x960
Interface：
MIPI
Technology：
Transmissive
Brightness：
500(Typ.)
Operating Tem：
-30~85°C
Storage Tem：
-30~85°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
