4.3 Inch 800×480 LVDS High Brightness Wide Temperature Display With Capacitive Touch For Aerospace Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET043WV21-KT

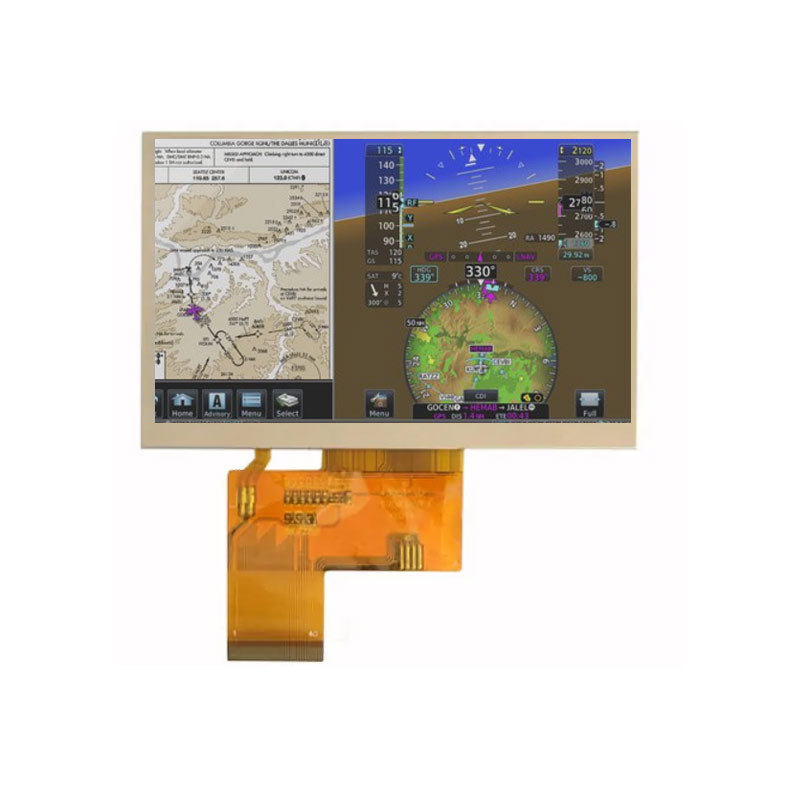

ET043WV21-KT is a 4.3-inch diagonal TFT-LCD display module designed for wide temperature applications. It supports a resolution of 800×480 with an aspect ratio of 16:9 (W:H) and utilizes an TTL interface driven by the ST7262 controller for stable performance. The display features an active area of 95.04 (W) × 53.86 (H) mm and an outline dimension of 105.40 (W) × 67.15 (H) × 4.36 (D) mm. It delivers a high brightness of 1100 cd/m², ensuring excellent readability in bright ambient environments. With a free viewing angle (L/R/U/D), it provides consistent image quality from multiple directions. The module integrates a capacitive touch panel for enhanced user interaction and is engineered to operate reliably within a wide temperature range of -30°C to 85°C.
Technical Data:
Part #：
ET043WV21-KT
Brand：
YOURITECH
Size：
4.3 inch"
Resolution：
800x480
Interface：
TTL
Technology：
Transmissive
Brightness：
1050nits
Operating Tem：
-30~85°C
Storage Tem：
-30~85°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
