4.3 Inch High Brightness 800nits 480x800 TTL Wide Temperature IPS TFT LCD Display With Capacitive Touch

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET043WV09-TT

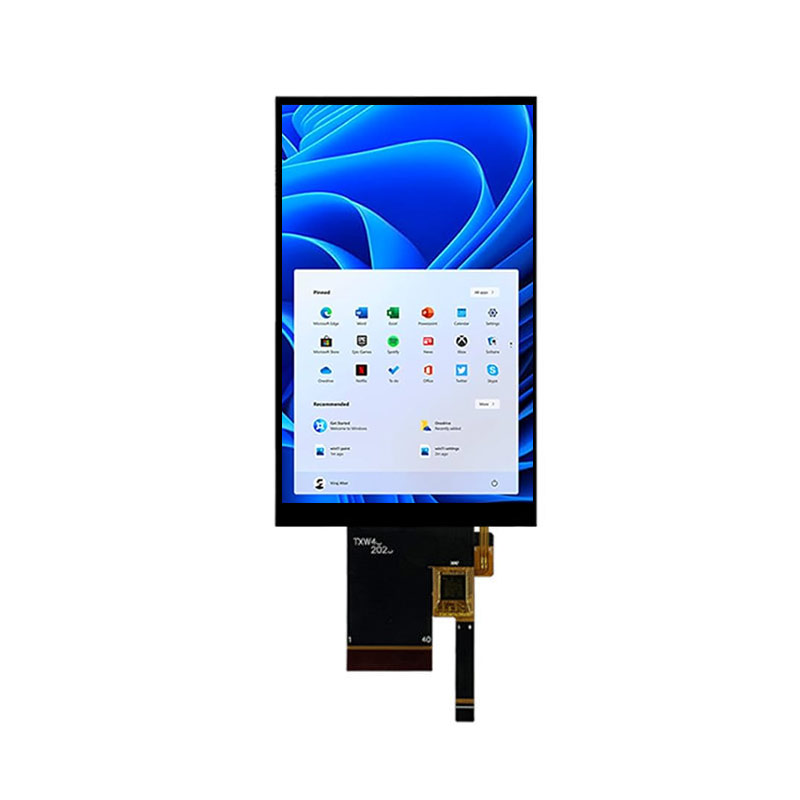

ET043WV09-TT is a 4.3-inch IPS TFT LCD display with capacitive touch, designed for handheld PDA applications with wide-temperature support. It features a 480×800 resolution in transmissive mode and uses a TTL interface. The display provides a typical brightness of 800 cd/m² with 80° viewing angles in all directions. It has an active area of 56.16 × 93.6 mm within an outline dimension of 62 × 104.25 mm, and supports operating and storage temperatures from –30°C to 85°C.
Technical Data:
Part #：
ET043WV09-TT
Brand：
YOURITECH
Size：
4.3 inch"
Resolution：
480x800
Interface：
TTL
Technology：
Transmissive
Brightness：
800(Typ.)
Operating Tem：
-30~85°C
Storage Tem：
-30~85°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
