4.3 Inch 800×480 TTL High Brightness 1000nits Wide Temperature IPS LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET043WV01-ZK

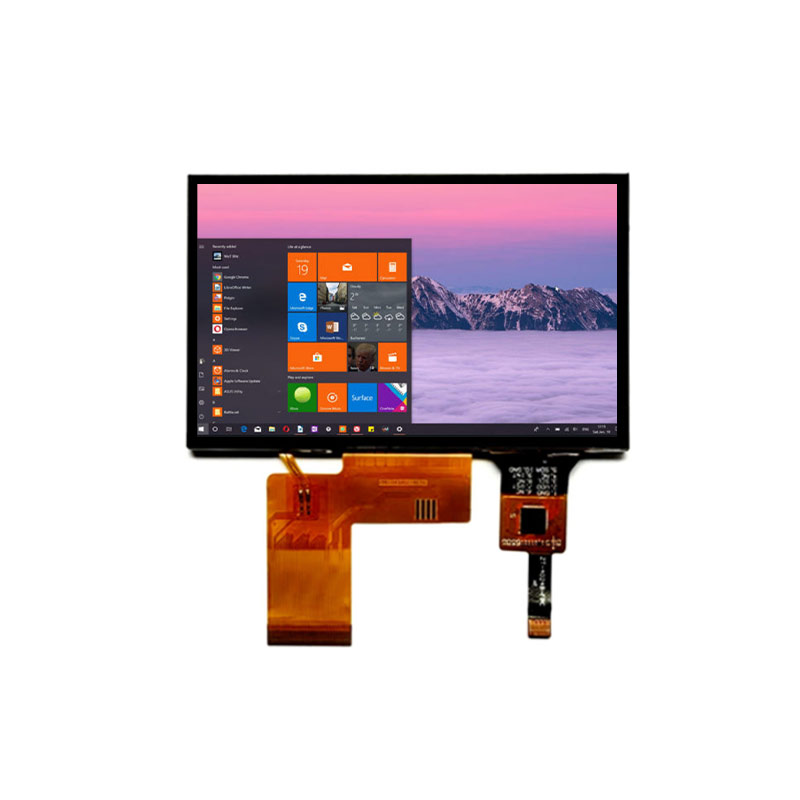

ET043WV01-ZK is a 4.3-inch diagonal TFT-LCD display product with a transmissive display mode. ET043WV01-ZK supports a resolution of 800×480 with a standard 15:9 aspect ratio, delivering clear and stable image performance, and utilizes a TTL interface for signal transmission. It features an active area of 95.04(W)×53.86(H) mm and an outline dimension of 105.42(W)×67.07(H) mm. The display provides a high brightness of 1000 cd/m², suitable for automotive and wide temperature applications, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET043WV01-ZK operates within an extended temperature range of -30 to 85°C and can be stored within the same -30 to 85°C range. This model does not include a touch function.

Technical Data:

Part #：

ET043WV01-ZK

Brand：

YOURITECH

Size：

4.3 inch"

Resolution：

800x480

Interface：

TTL

Technology：

Transmissive

Brightness：

1000nits

Operating Tem：

-30~85°C

Storage Tem：

-30~85°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
