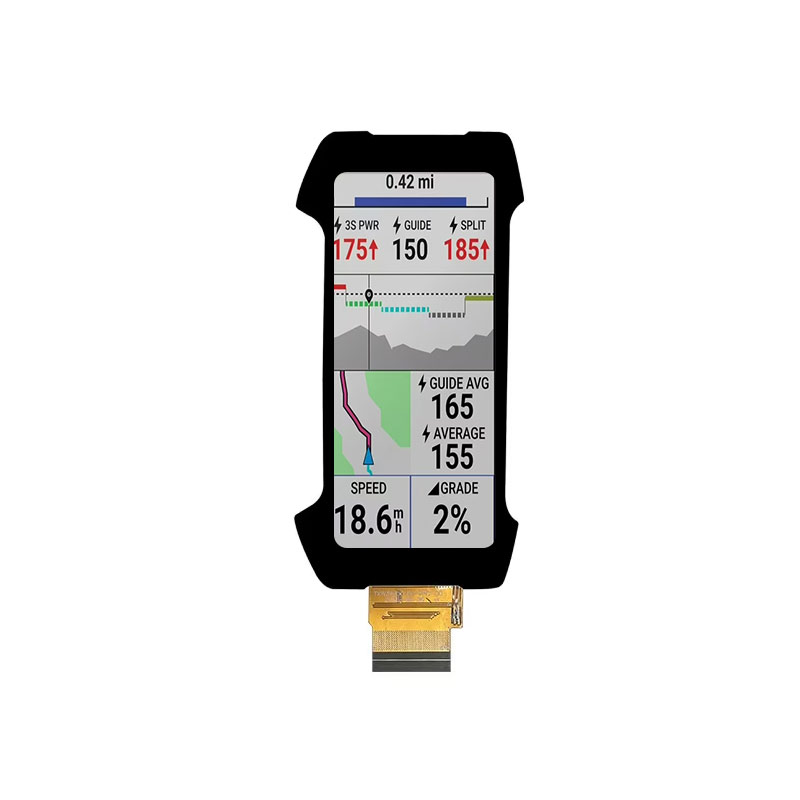

4 Inch 400×960 TTL 800nits High Brightness LCD Display For Cycling Computer Bike Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET040WF01-T
ET040WF01-T is a 4.0-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 400×960 with a 5:12 aspect ratio (W:H) and adopts a TTL interface for stable integration. The display offers an active area of 39.18 (W) × 94.03 (H) mm and an outline dimension of 42.9 (W) × 95.7 (H) mm. With a brightness of 800 cd/m², it ensures good visibility under various lighting conditions, making it suitable for cycling computer and bike display applications. It provides wide viewing angles of 80/80/80/80 (L/R/U/D) and operates within a temperature range of -20°C to 60°C (storage: -30°C to 70°C). This module does not include a touch panel.
Technical Data:
Part #：
ET040WF01-T
Brand：
YOURITECH
Size：
4 inch"
Resolution：
400x960
Interface：
TTL
Technology：
Transmissive
Brightness：
800nits
Operating Tem：
-20~60°C
Storage Tem：
-30~70°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
