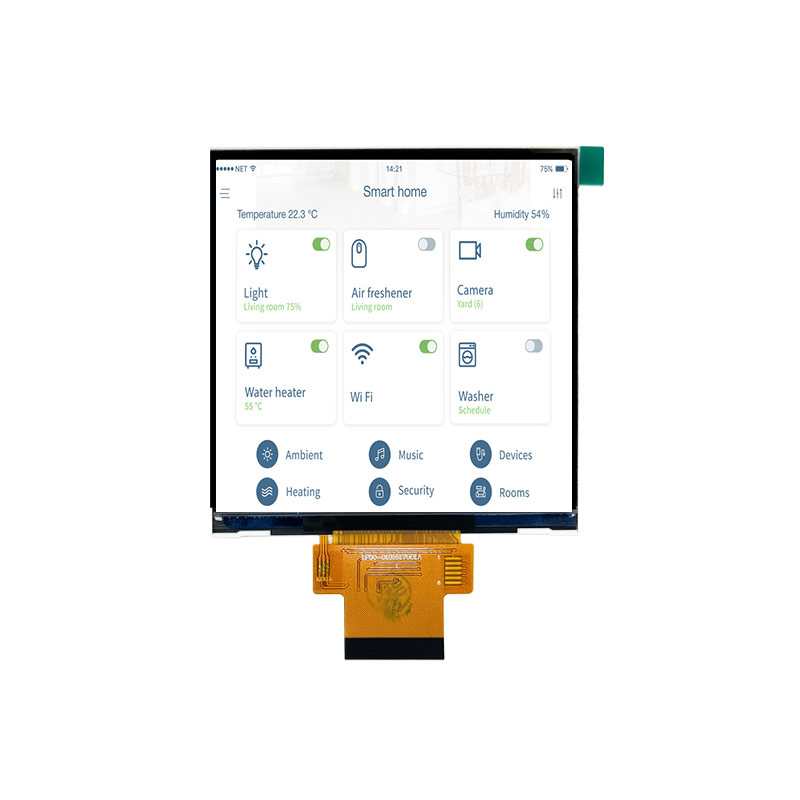

4 Inch TFT LCD Display Serial RGB 480×480 High Brightness LCD Display With On-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET040SQ02-GT
ET040SQ02-GT is a 4.0 inch diagonal TFT LCD display product featuring a transmissive display mode. It supports a 480×480 resolution with a Serial RGB interface, providing clear images, stable performance, and excellent visual quality for embedded and industrial applications. The display features an active area of 71.86(W)×70.18(H) mm and an outline dimension of 74.83(W)×78.94(H) mm. ET040SQ02-GT provides a high brightness of 500 cd/m² (Typ.) and offers a wide viewing angle of 85/85/85/85 degrees (L/R/U/D), ensuring consistent image visibility from multiple directions. It supports an operating temperature range from -20°C to 70°C and a storage temperature range from -30°C to 80°C. The module integrates On-Cell Touch functionality, providing an interactive display solution suitable for smart devices, industrial control systems, handheld equipment, and embedded applications.
Technical Data:
Part #：
ET040SQ02-GT
Brand：
YOURITECH
Size：
4 inch"
Resolution：
480x480
Interface：
Serial RGB
Technology：
Transmissive
Brightness：
500(Typ.)
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
