4 Inch 720x720 Wide Temperature TFT LCD Display LVDS NV3051F-L -30°C to 80°C High Brightness Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET040HD22-K

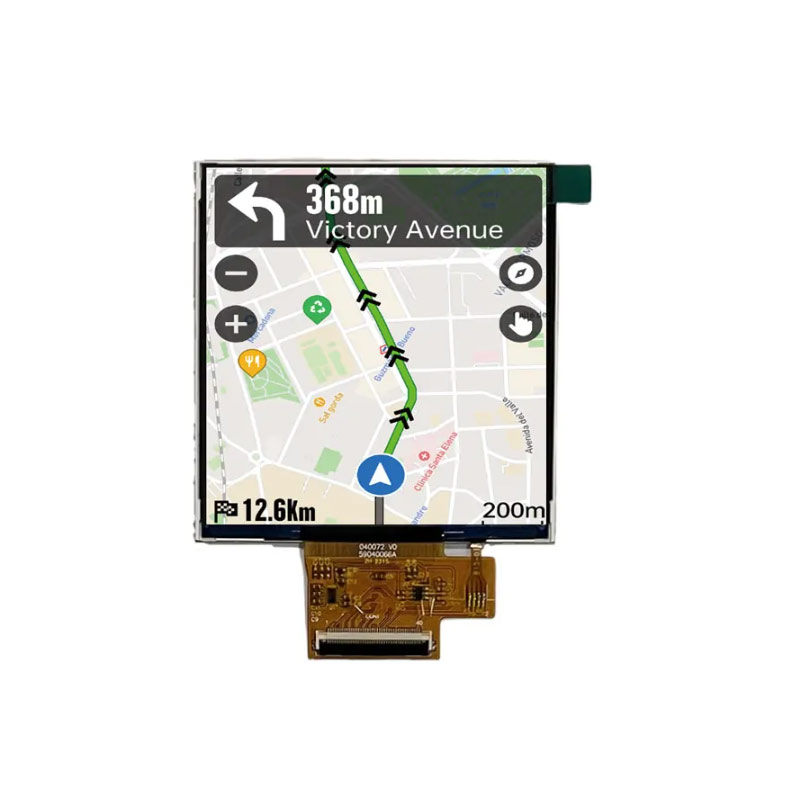

ET040HD22-K is a 4-inch diagonal TFT-LCD display module designed for wide temperature and industrial applications. It supports a resolution of 720×720 with a square aspect ratio of 1:1 (W:H) and utilizes an LVDS interface driven by the NV3051F-L controller for stable signal performance. The display features an active area of 71.93 (W) × 71.93 (H) mm and an outline dimension of 77 (W) × 80 (H) × 2.6 (D) mm. It delivers a brightness of 700 cd/m², ensuring good visibility under various lighting conditions. With a free viewing angle (L/R/U/D), it provides consistent image quality from multiple directions. The module is engineered for reliable operation in harsh environments, supporting a wide temperature range of -30°C to 80°C.

Technical Data:

Part #：

ET040HD22-K

Brand：

YOURITECH

Size：

4 Inch"

Resolution：

720x720

Interface：

LVDS

Technology：

Brightness：

700nits

Operating Tem：

-30~80°C

Storage Tem：

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
