3.9 Inch 480x128 Stretched Bar Display IPS SPI TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET039BA02-H

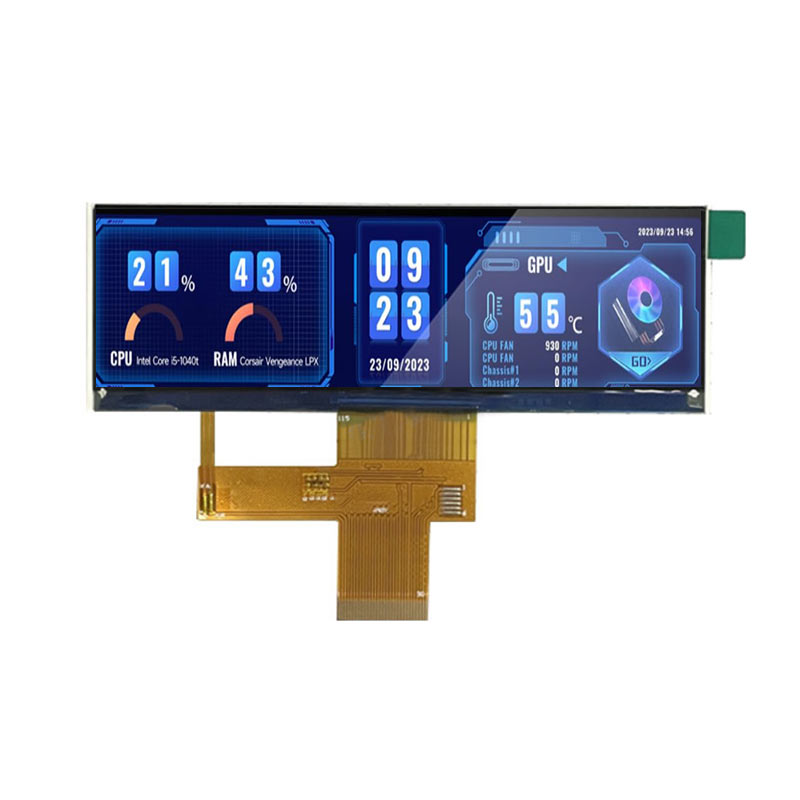

ET039BA02-H is a 3.9-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 480 × 128 pixels and uses an SPI interface for signal communication. The display offers an active area of 95.04 (W) × 25.34 (H) mm within a compact outline dimension of 102.46 (W) × 34.4 (H) mm. With wide viewing angles of 85° in all directions (L/R/U/D), it delivers stable and consistent visual performance from multiple viewpoints. The typical brightness reaches 400 cd/m², providing good readability in indoor and semi-bright environments. ET039BA02-H is designed for reliable operation with an operating temperature range of −20 to 70°C and a storage temperature range of −30 to 80°C. This model is supplied without touch functionality, making it well suited for compact elongated display applications such as status displays, control panels, and embedded industrial systems.

Technical Data:

Part #：

ET039BA02-H

Brand：

YOURITECH

Size：

3.9 inch"

Resolution：

480x128

Interface：

SPI

Technology：

Transmissive

Brightness：

400 cd/m²

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
