3.9 Inch 800x216 Stretched Bar Display IPS Serial RGB TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET039BA01-R

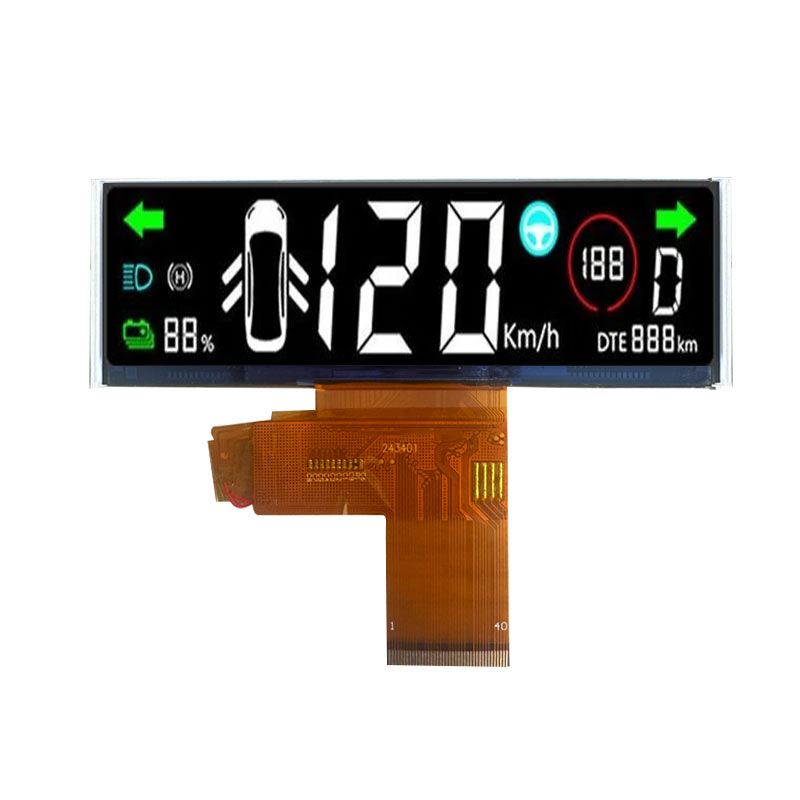

ET039BA01-R is a 3.9-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 800 × 216 pixels, using a Serial RGB interface for signal input. The display has an active area of 96.04 (W) × 25.68 (H) mm and an outline dimension of 103.2 (W) × 34.83 (H) mm. With wide viewing angles of 85° in all directions (L/R/U/D), it ensures consistent image quality from different perspectives. The typical brightness reaches 300 cd/m², making it suitable for indoor and controlled-light environments. ET039BA01-R is designed for reliable operation with an operating temperature range of −20 to 70°C and a storage temperature range of −30 to 80°C. This model is supplied without touch functionality, making it ideal for compact, elongated display applications such as industrial indicators, instrumentation panels, and embedded systems.

Technical Data:

Part #：

ET039BA01-R

Brand：

YOURITECH

Size：

3.9 inch"

Resolution：

800x216

Interface：

Serial RGB

Technology：

Transmissive

Brightness：

300(Typ.)

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
