3.9 Inch 800x216 Stretched Bar Display IPS RGB 1000nits High Brightness TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET039BA01-HG

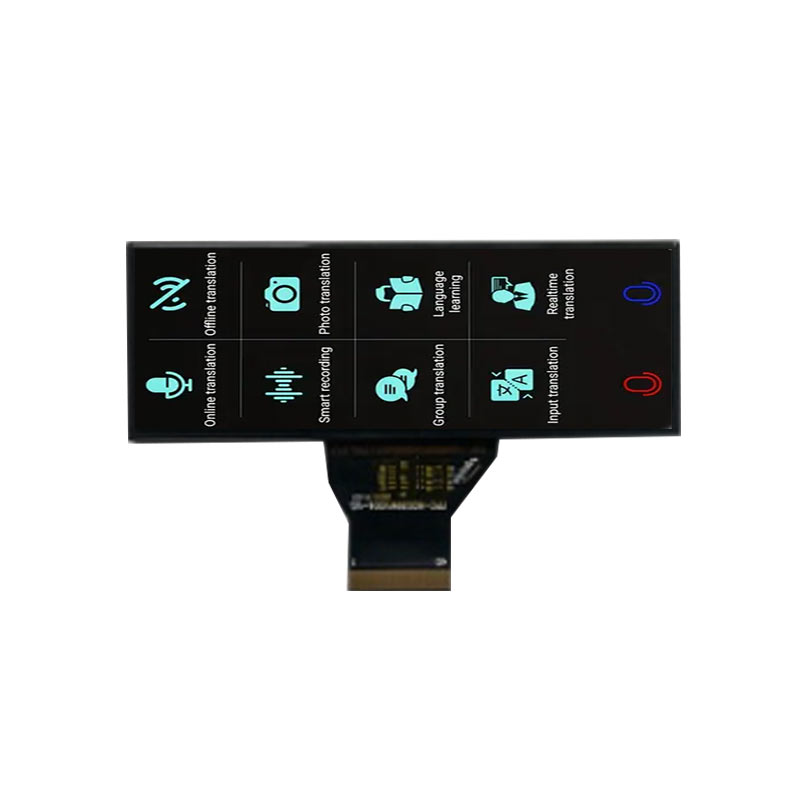

ET039BA01-HG is a 3.9 inch diagonal TFT-LCD display product featuring IPS technology and a transmissive display mode. ET039BA01-HG supports a display resolution of 800×216 with a stretched bar format, utilizing an RGB pixel arrangement. It features an active area of 95.24(W) × 24.4(H) mm and an outline dimension of 100.4(W) × 32.9(H) mm. The display adopts a TTL interface and can provide 1000 cd/m² high brightness, delivering excellent visibility for high-ambient-light environments. With an IPS wide viewing angle of 80/80/80/80 (L/R/U/D), it offers consistent image quality from multiple viewing directions. ET039BA01-HG supports an operating temperature range of -20~70°C and a storage temperature range of -30~80°C, making it suitable for industrial and outdoor display applications. This model is designed without touch functionality.

Technical Data:

Part #：

ET039BA01-HG

Brand：

YOURITECH

Size：

3.9 inch"

Resolution：

800x216

Interface：

TTL

Technology：

Transmissive

Brightness：

1000 cd/m²

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
