3.5 Inch 320×240 TTL -30°C to 80°C Wide Temperature LCD Display High Brightness 800nits TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET035QV01-R

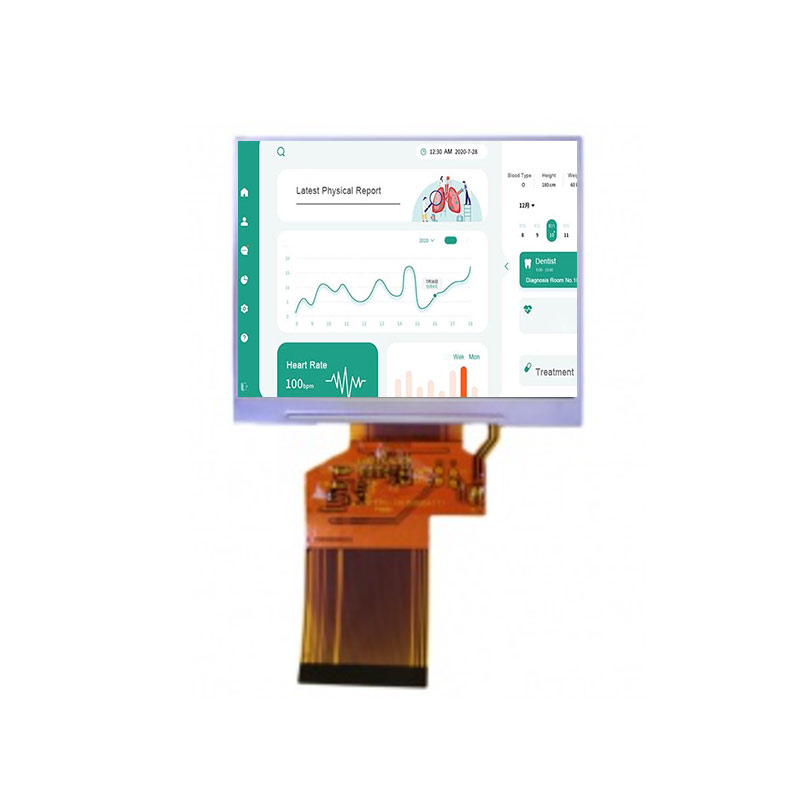

ET035QV01-R is a 3.5-inch diagonal TFT-LCD display module, featuring a transmissive display mode. ET035QV01-R supports a resolution of 320×240, delivering clear and bright image performance. It adopts a TTL interface for reliable system integration, with pixels arranged to ensure stable visual output. The module features an active area of 70.08(W) × 52.56(H) mm and an outline size of 76.9(W) × 63.9(H) mm. ET035QV01-R provides a typical brightness of 800 cd/m² and supports viewing angles of 65°/65°/55°/65° (L/R/U/D). Designed for wide temperature environments, it operates from -30°C to 80°C with the same storage range, and it does not include a touch function.

Technical Data:

Part #：

ET035QV01-R

Brand：

YOURITECH

Size：

3.5 Inch"

Resolution：

320x240

Interface：

TTL

Technology：

Transmissive

Brightness：

800(Typ.)

Operating Tem：

-30~80°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
