3.5 Inch TFT LCD Display 640×960 MIPI LCD Display With In-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET035QH01-HT

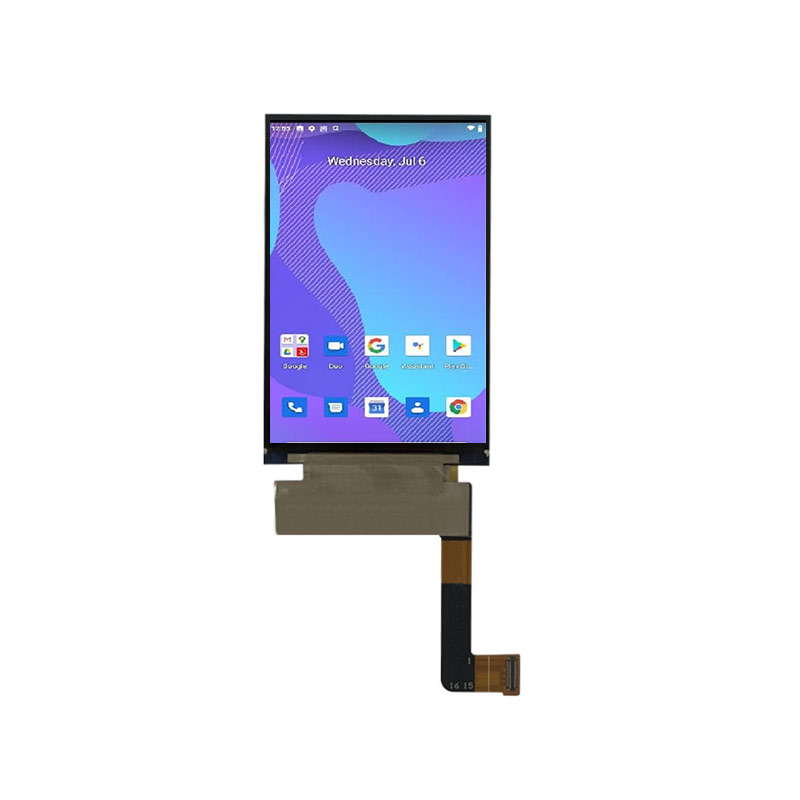

ET035QH01-HT is a 3.5 inch diagonal TFT LCD display module with In-Cell Touch technology. ET035QH01-HT supports a 640×960 resolution with an aspect ratio of 2:3 (W:H), delivering sharp images and excellent color performance. It features a MIPI interface and adopts a transmissive display mode. The module has an active area of 49.92(W) × 74.88(H) mm and an outline dimension of 52.72(W) × 81.68(H) mm. ET035QH01-HT provides a typical brightness of 450 cd/m² and offers an ultra-wide viewing angle of 85/85/85/85 (L/R/U/D), ensuring consistent image quality and color accuracy from all viewing directions. Integrated In-Cell Touch technology enables a thinner module design with fast and responsive touch performance. The display operates reliably within a temperature range of -20°C to 70°C and supports storage temperatures from -30°C to 80°C, making it well suited for handheld terminals, industrial control systems, portable medical devices, smart home products, and other embedded HMI applications.
Technical Data:
Part #：
ET035QH01-HT
Brand：
YOURITECH
Size：
3.5 inch"
Resolution：
640x960
Interface：
MIPI
Technology：
Transmissive
Brightness：
450(Typ.)
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
