3.5 Inch Wide Temperature 320×480 CPU RGB SPI -30°C to 85°C High Brightness 800nits TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET035HV20-K

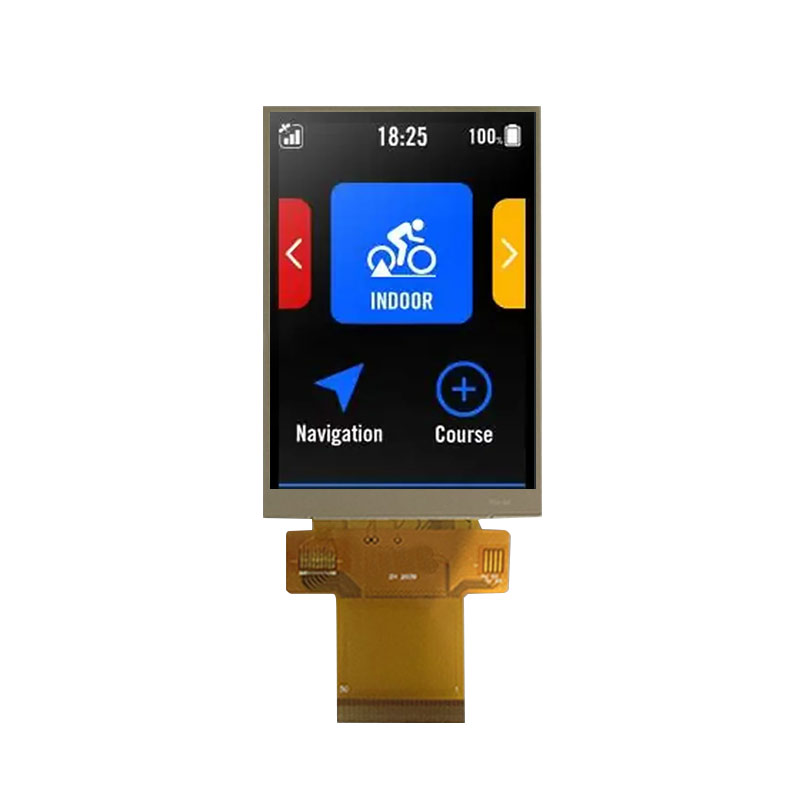

ET035HV20-K is a 3.5-inch diagonal TFT-LCD display module, featuring a transmissive display mode. ET035HV20-K supports a resolution of 320×480 with a standard aspect ratio, delivering clear and bright image performance. It adopts a CPU/RGB/SPI interface for flexible system integration, with pixels arranged to ensure stable and reliable display output. The module features an active area of 48.96(W) × 73.44(H) mm and an outline size of 55.5(W) × 84.96(H) mm. ET035HV20-K provides a typical brightness of 800 cd/m² and supports wide viewing angles of 85° in all directions (L/R/U/D). Designed for wide temperature environments, it operates from -30°C to 85°C with the same storage range, and it does not include a touch function.
Technical Data:
Part #：
ET035HV20-K
Brand：
YOURITECH
Size：
3.5 inch"
Resolution：
320x480
Interface：
CPU/RGB/SPI
Technology：
Transmissive
Brightness：
800(Typ.)
Operating Tem：
-30~85°C
Storage Tem：
-30~85°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
