2.9 Inch 376x960 Wide Temperature LCD Display MIPI -30°C to 85°C High Brightness 550nits TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET029HD01-R

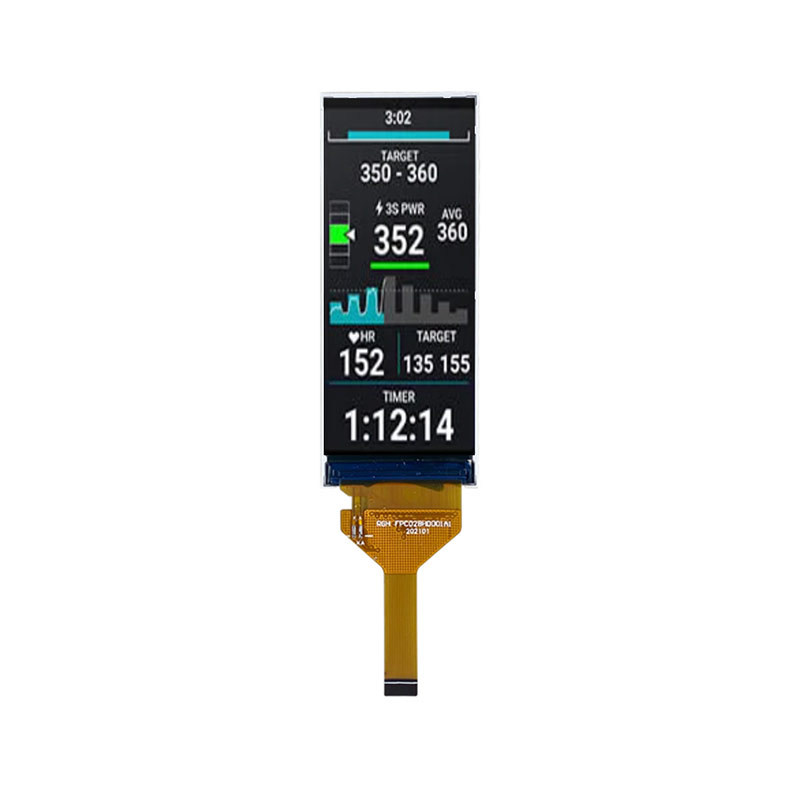

ET029HD01-R is a 2.9-inch diagonal TFT-LCD display module product, featuring a transmissive display mode. ET029HD01-R supports a resolution of 376×960 with a long aspect ratio, delivering clear and vivid image performance. It adopts a MIPI interface for high-speed data transmission, with pixels arranged to ensure stable and reliable display quality. It features an active area of 27.508(W) × 68.68(H) mm and an outline size of 31.2(W) × 76.6(H) mm. ET029HD01-R provides a brightness of 550 cd/m² and supports viewing angles of 80° in all directions (L/R/U/D), ensuring good visibility. Designed for wide temperature environments, it operates within a range of -30°C to 85°C with the same storage temperature range, and it does not include a touch function.

Technical Data:

Part #：

ET029HD01-R

Brand：

YOURITECH

Size：

2.9 Inch"

Resolution：

376x960

Interface：

MIPI

Technology：

Transmissive

Brightness：

550nits

Operating Tem：

-30~85°C

Storage Tem：

-30~85°C
