2.8 Inch 240×320 Wide Temperature LCD Display TTL -30°C to 80°C High Brightness 600nits TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET028WT01-GL

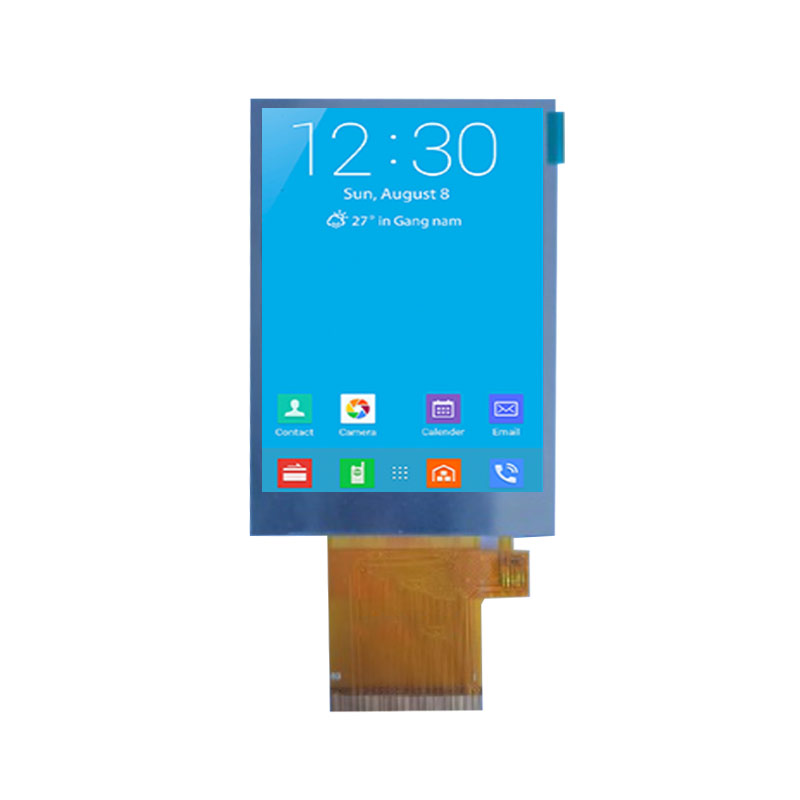

ET028WT01-GL is a 2.8-inch diagonal TFT-LCD display module product, featuring a transmissive display mode. ET028WT01-GL supports a resolution of 240×320 with a standard aspect ratio, delivering clear and bright image performance. It adopts a TTL interface for stable signal transmission, with pixels arranged to ensure reliable visual output. It features an active area of 43.2(W) × 57.6(H) mm and an outline size of 50(W) × 69.2(H) mm. ET028WT01-GL provides a high brightness of 600 cd/m² and supports full viewing angles, ensuring excellent visibility from all directions. Designed for wide temperature applications, it operates within a range of -30°C to 80°C with the same storage temperature range, and it does not include a touch function.

Technical Data:

Part #：

ET028WT01-GL

Brand：

YOURITECH

Size：

2.8 Inch"

Resolution：

240x320

Interface：

TTL

Technology：

Transmissive

Brightness：

600nits

Operating Tem：

-30~80°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
