2 Inch 480×360 MIPI High Brightness 900nits Wide Temperature LCD Display For Cycling Computer Bike Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET020WQ30-K

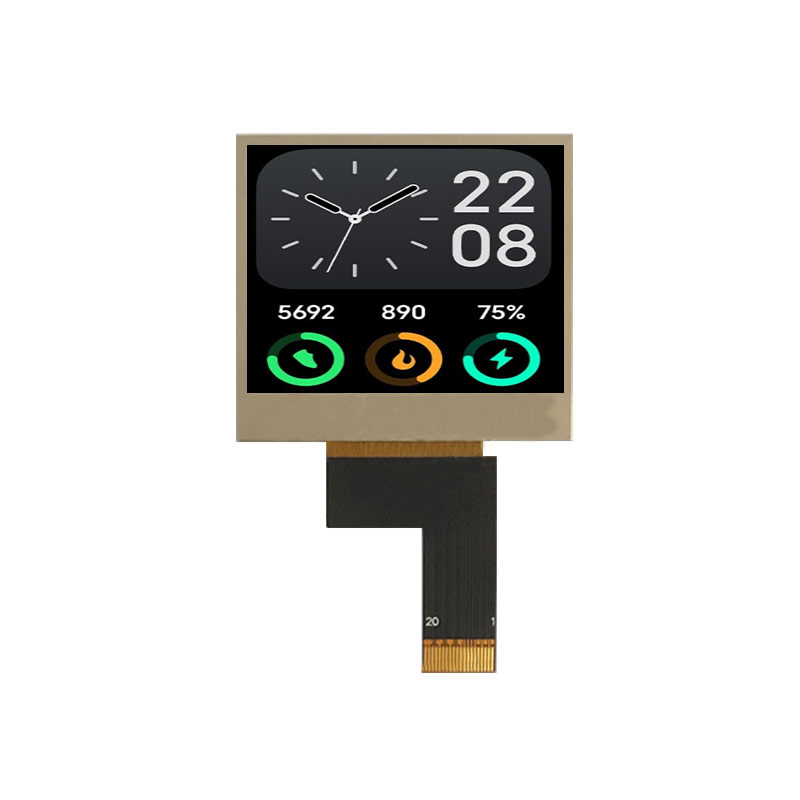

ET020WQ30-K is a 2.0-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 480×360 with a 4:3 aspect ratio (W:H), delivering clear and balanced image performance. This module adopts a MIPI interface for efficient data transmission. It offers an active area of 40.824 (W) × 30.618 (H) mm and an outline dimension of 46.5 (W) × 41.56 (H) mm. With a high brightness of 900 cd/m², it ensures excellent visibility even under strong ambient light, making it suitable for outdoor applications such as cycling computer and bike displays. The display provides wide viewing angles of 80/80/80/80 (L/R/U/D), ensuring consistent image quality from different directions. It operates reliably within a wide temperature range of -30°C to 85°C (storage: -30°C to 85°C), and does not include a touch panel.
Technical Data:
Part #：
ET020WQ30-K
Brand：
YOURITECH
Size：
2 inch"
Resolution：
480x360
Interface：
MIPI
Technology：
Transmissive
Brightness：
900nits
Operating Tem：
-30~85°C
Storage Tem：
-30~85°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
